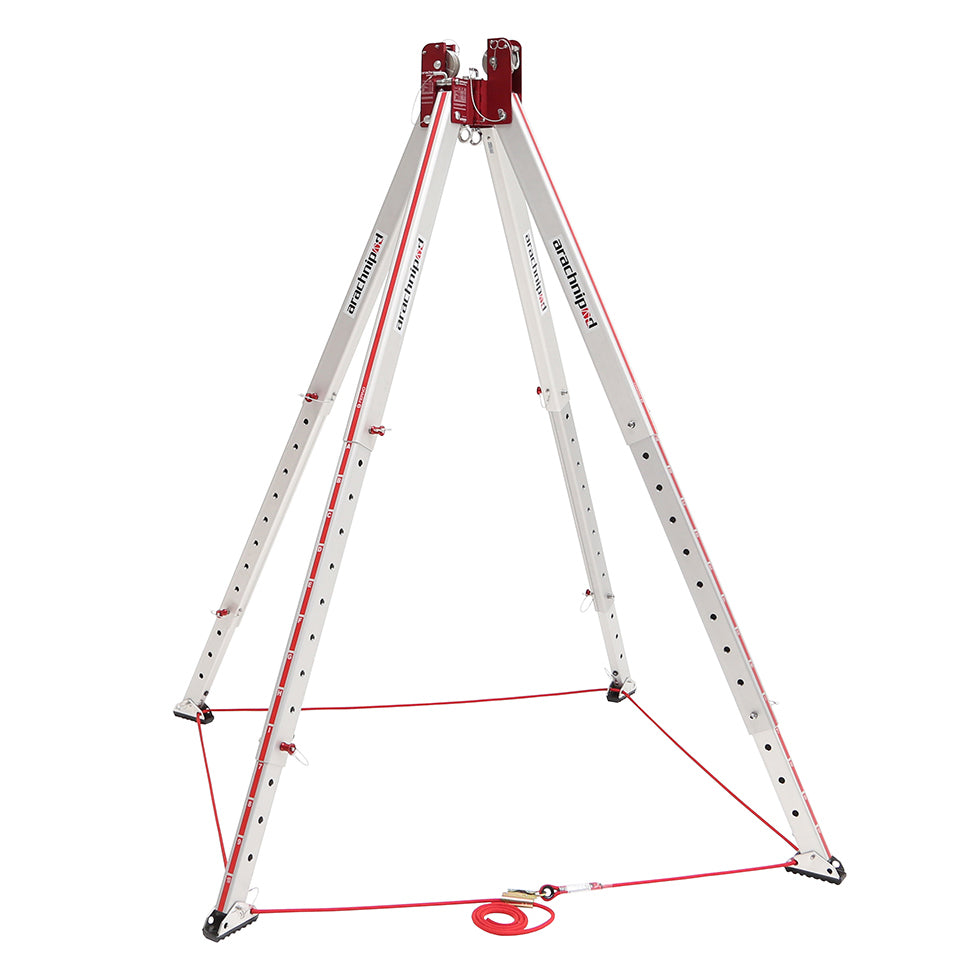

Ferno ArachniPOD QuadPOD Kit

Brand: Ferno

Product Code: APOD-QUAD

Availability:In stock

The Ferno ArachniPOD QuadPOD is designed for rescue and confined space entry scenarios. It comprises of two Standard Legs and two Pulley Legs. The system provides four stabilisation rigging points, two load attachment points, two double-grooved pulleys and the versatility to configure additional systems via accessories.

The ArachniPOD's uniquely designed head system enables legs to be quickly disconnected from each other to aid in storing flat for compact storage and transportation. Each of the legs is supplied with an upgraded Standard #2 Foot.

Features

  • Two stainless steel double-grooved pulley accommodates 8mm steel wire rope and fibre rope up to 13mm

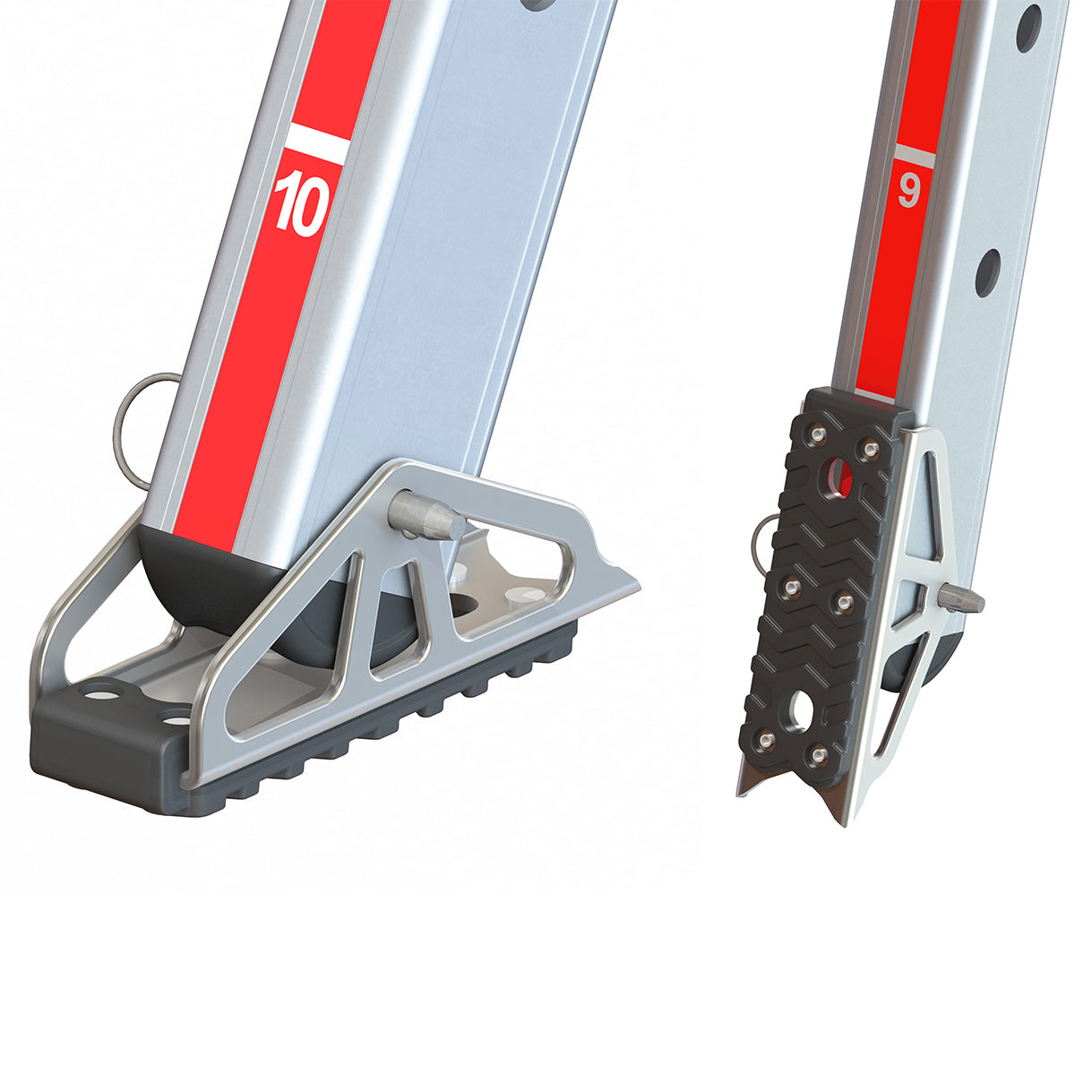

  • Upgraded Standard feet suits both flat and uneven surfaces, pivot to adjust to ground variations and incorporate an aggressive non-slip tread pattern
  • Rectangular, adjustable legs with leg pins
  • Two stainless steel swivel eye bolt anchor points
  • Each leg includes a stabilisation attachment point

Inclusions

  • 2 x Standard Legs feature rated load attachment points that swivel 360 degrees, along with an additional D-shackle attachment point for stabilisation rigging
  • 2 x  Pulley Leg incorporates a pulley designed to accommodate up to 13 mm fibre rope as well as up to 8 mm steel/stainless steel wire cable rope
  • 1 x Quad Plate (accessory)
  • 1 x Feet Rope and Rope Grab
  • 1 x Transport Bag

The ArachniPOD QuadPOD can be configured into

  • Tripod
  • Handrail Recovery Monopole
  • Quadpod (Quad Plate required - supplied)
  • A-Frame (Rigging Plate required - sold separately)
  • Sideways A--Frame (Rigging Plate - sold separately)

Specifications

  • Max. Inside Clearance Height - 2671mm / 105"
  • Inside Feet Footprint - 2551mm x 2171mm / 100.4"
  • Configured Device Weight - 37 kg / 82 lb
  • WLL External Anchor Point - 400 kg / 880lb at max. height
  • Minimum Breaking Strength - 40kN
  • WLL Load Anchored to Leg - 220kg / 485lb
  • CertificationCertified in 3 and 4 leg configurations to CEN/TS 16415:2013 for max 2 persons and EN 795:2012 for single person use
