CMC Rescue CSR2 Pulleys

Brand: Ferno

Product Code: CMC300343

Availability:In stock

Available Options

The redesigned CSR2 Confined Space Rescue Pulley from CMC is stronger yet lighter and incorporates 11 mm to 13 mm life safety rope. These are ideal for industrial applications as well as many rescue operations.

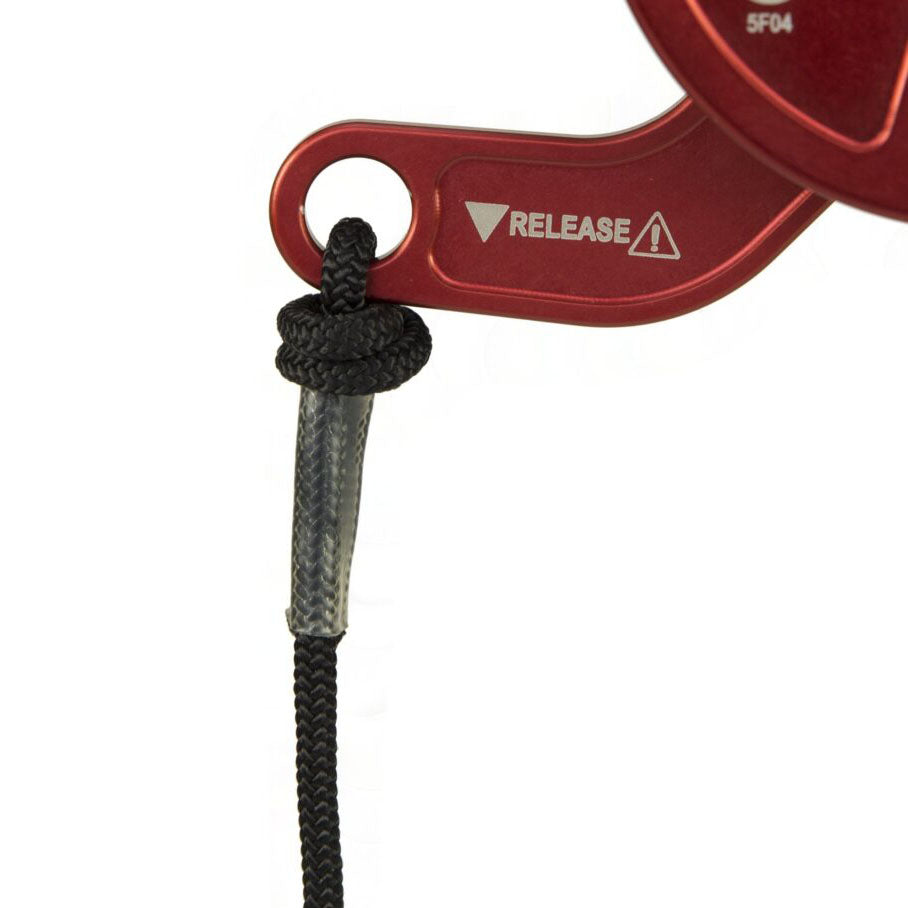

The CSR2 uses CMC's proprietary, patented locking system, which eliminates a toothed cam or Prusik so it can be easily and safely released while under load.

The absence of the toothed cam means that even if the system is fully collapsed and pulled tight, it can still be released easily. Systems using a toothed cam must be raised even further before the cam can be released, which can be impossible if the system is fully collapsed.This could then cause potential problems with the load on the system becoming stuck.

An integral thrust-bearing swivel reduces torque by aligning the pulley with the load, thereby increasing efficiency and safety. Its larger size allows for the easy application of rescue size carabiners.

These Rescue pulleys are made in the USA and CNC machined from a solid block of aircraft-grade aluminium, the CSR2 features a high-strength aluminium side plate, sealed bearings and anodised aluminium sheaves. The side becket location allows for maximum lift height and full retraction of the system, and a removable becket cover facilitates changing out lifeline with sewn terminations.

Specifications

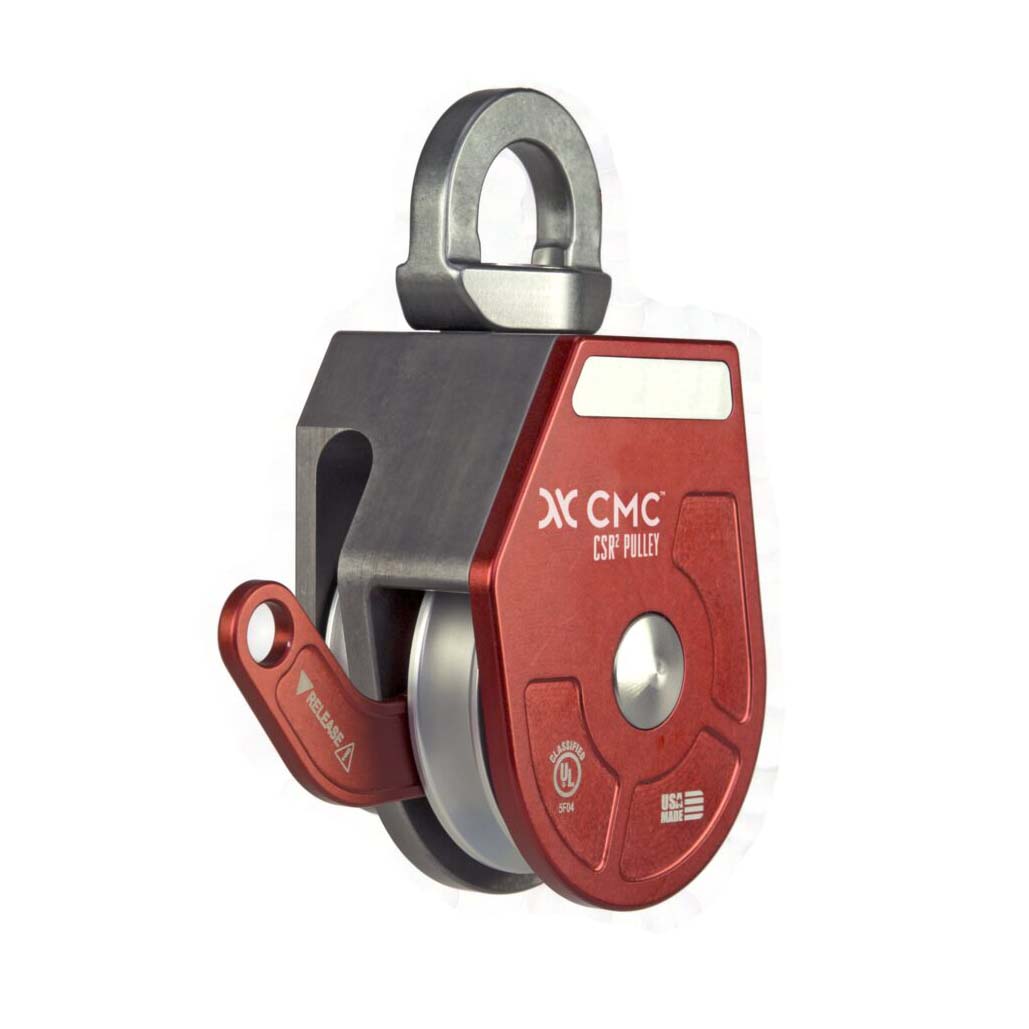

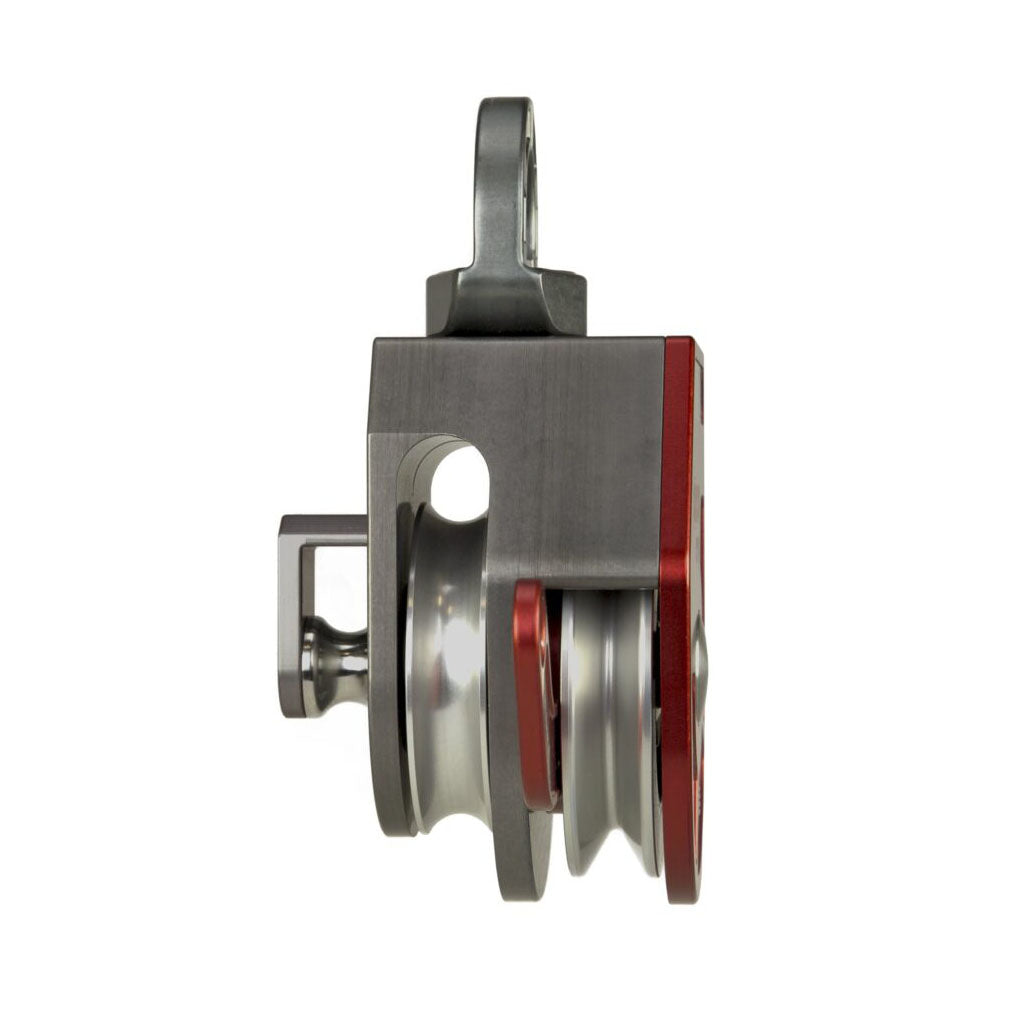

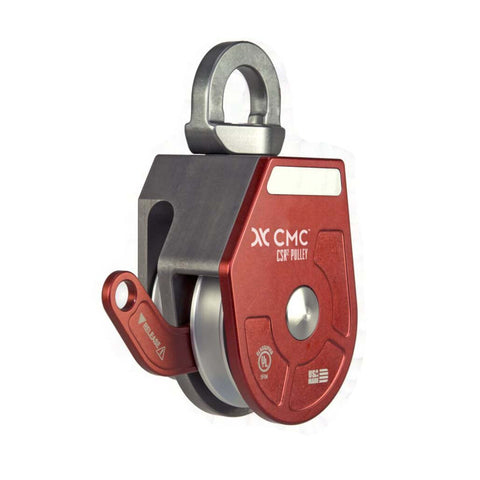

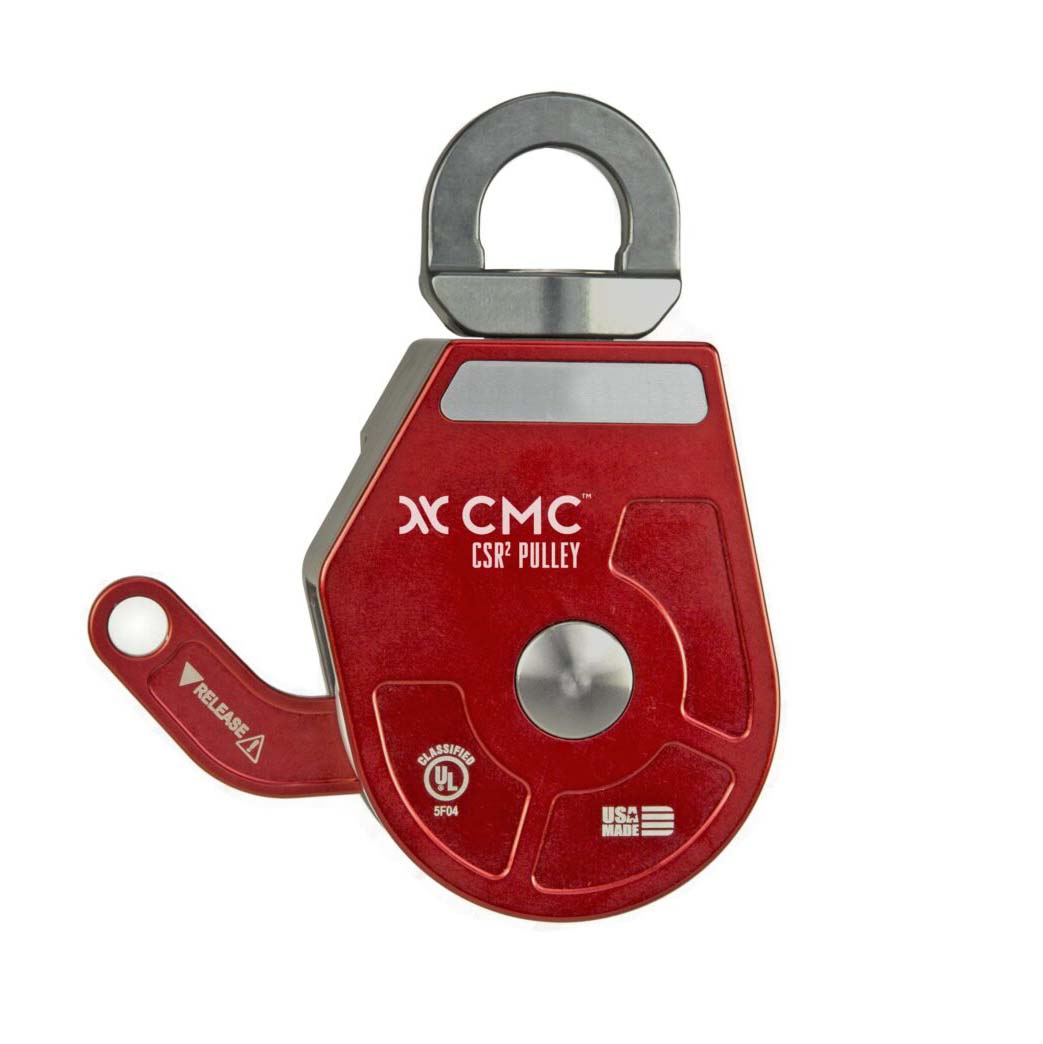

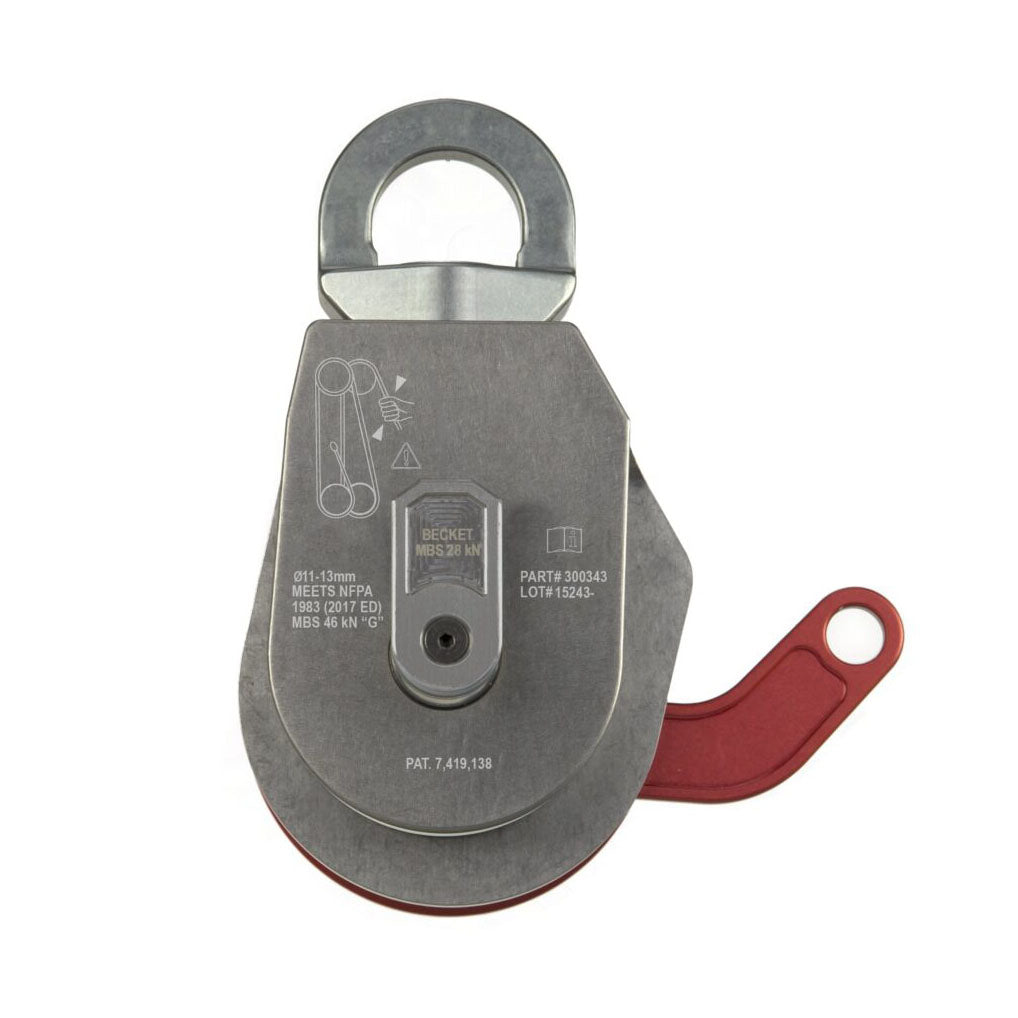

CSR2 Pulley - CMC300343

  • MBS - 46kN
  • Weight - 1.1kg
  • Sheave Dia - 13mm
  • Sheave Width - 57mm
  • Colour - Red / Grey

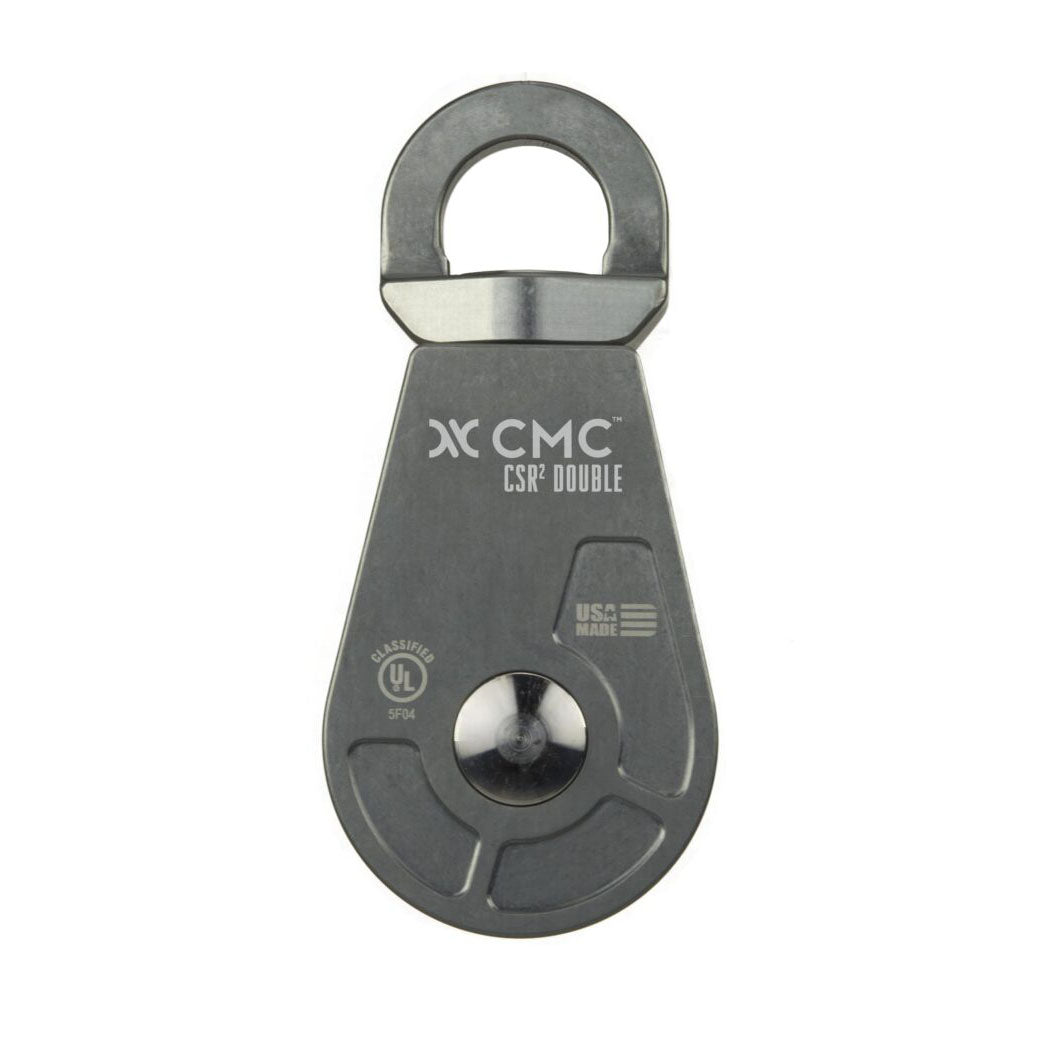

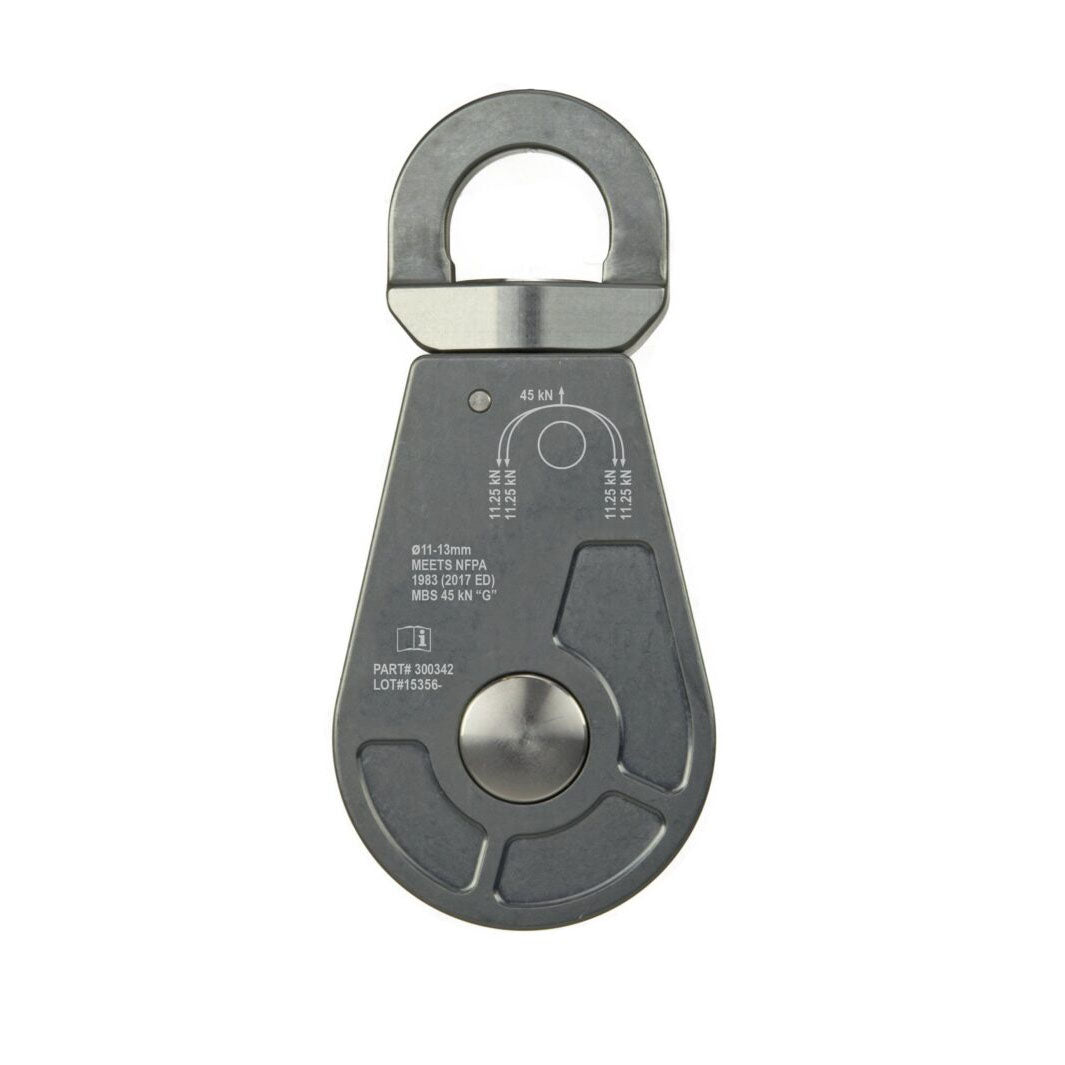

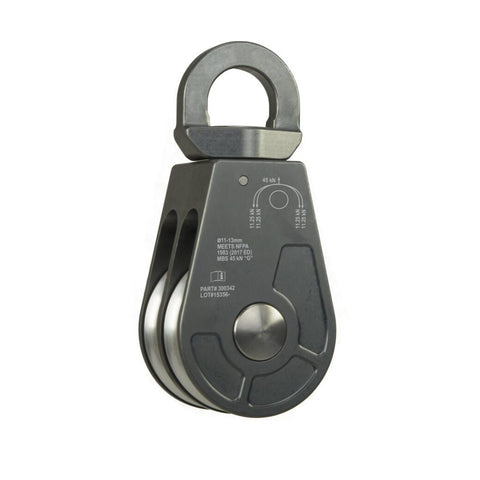

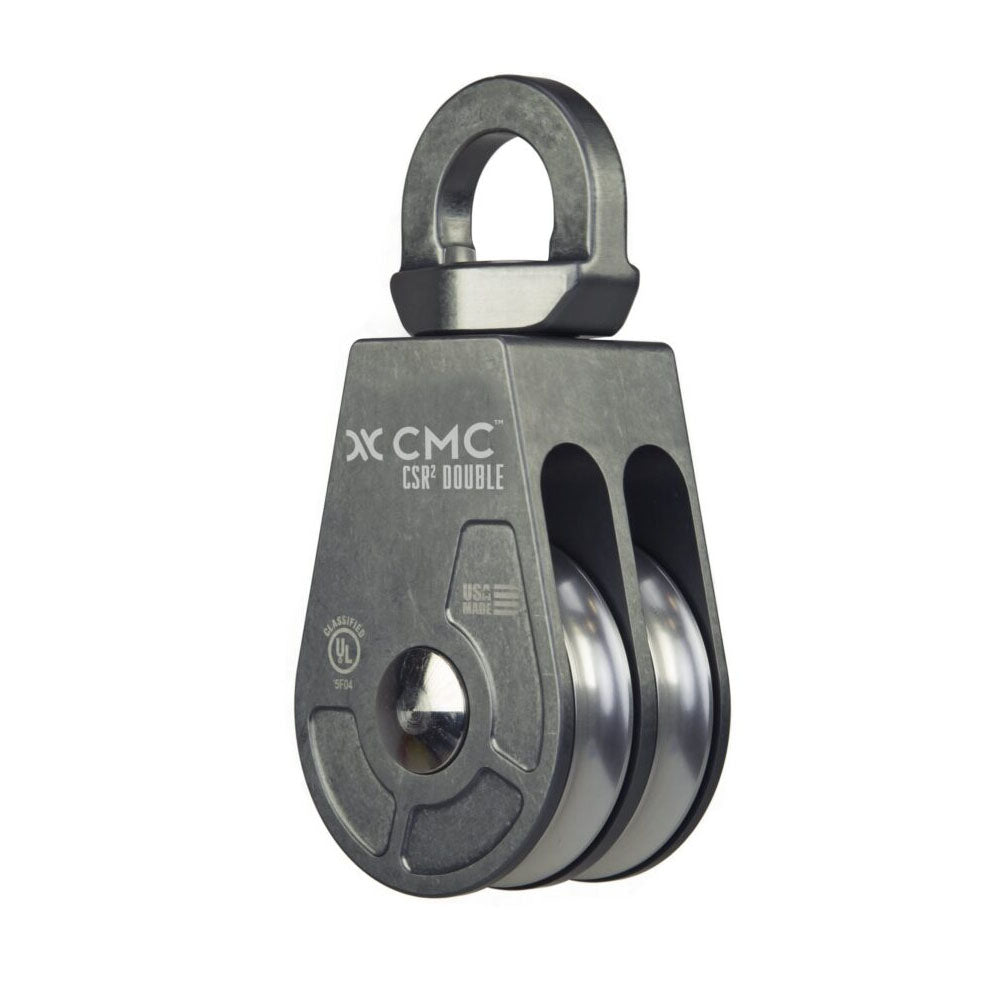

CSR2 Double Pulley - CMC300342

  • MBS - 45kN
  • Weight - 680g
  • Sheave Dia - 13mm
  • Sheave Width - 57mm
  • Colour - Grey
