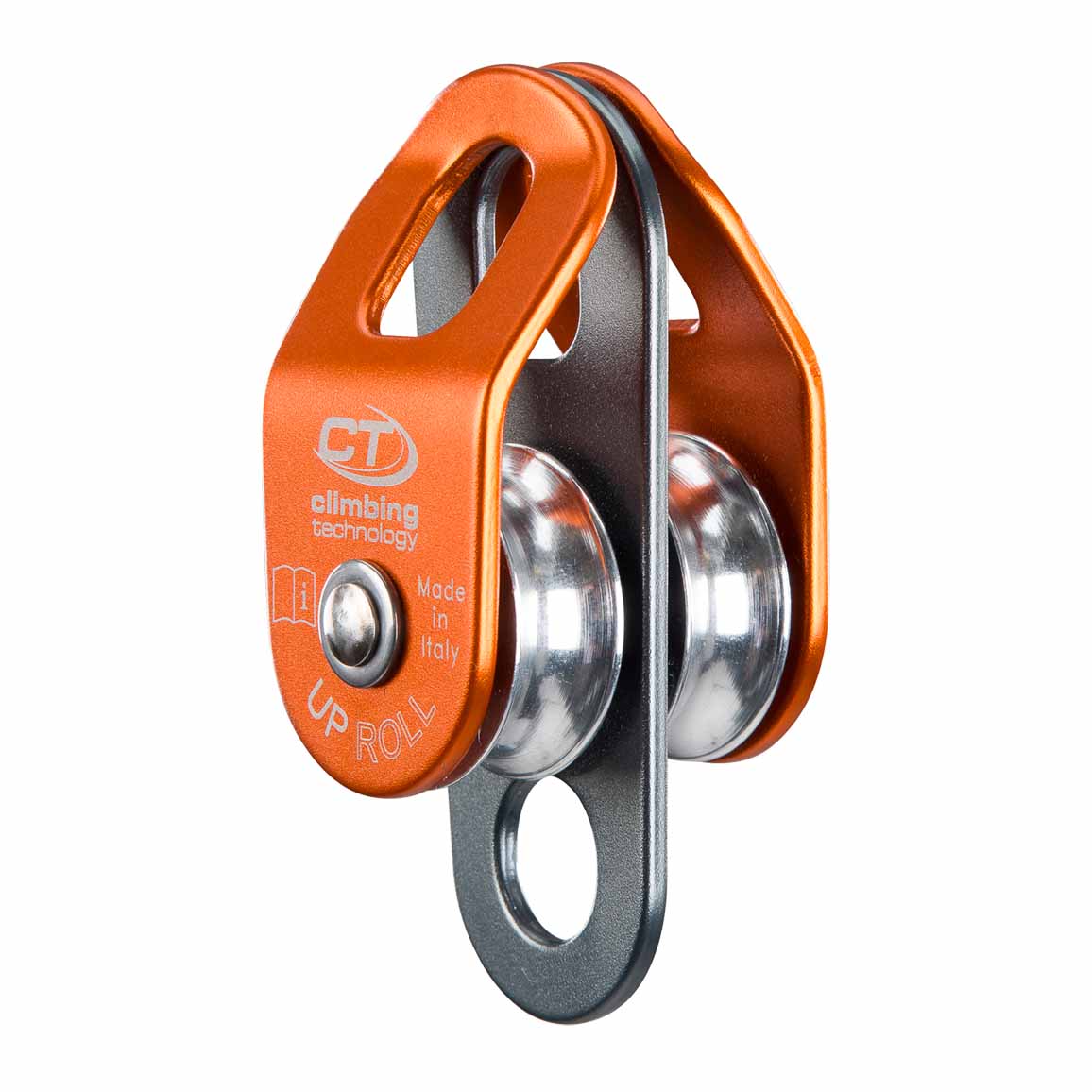

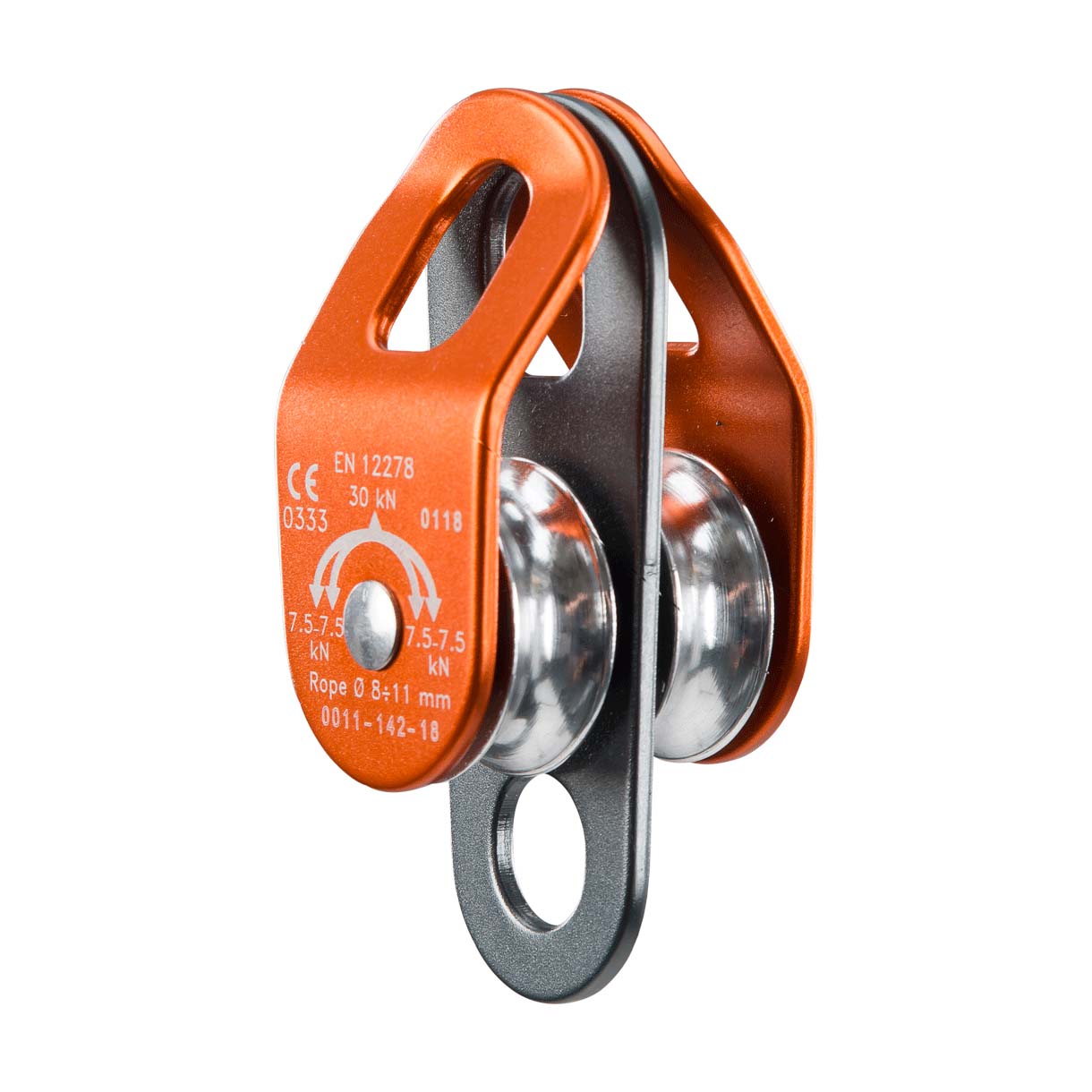

Climbing Technology Up Roll Double Alloy Pulley
Climbing Technology Up Roll Double Alloy Pulley
The Up Roll from Climbing Technology is a double alloy pulley designed to pair with the Up Lock auto lock pulley to build mechanical advantage systems on 8mm to 11mm rope. Together they give you a compact, efficient haul kit for rescue and rope access work.
Both sheaves are mounted on ball bearings for excellent rolling movement, so the system stays efficient under load. Strength with light weight comes from anodised light alloy side plates and pulleys running on a cast stainless steel cam. It carries a 6 kN working load limit and a 30 kN breaking load at just 115 g, measures 36 x 89 x 44 mm, and is certified to EN 12278:2007 and EN 567:2013. Use it on 8 to 11 mm EN 892 or EN 1891 rope, or on 8 mm EN 564 cord. Browse more rigging gear, other Climbing Technology hardware, or the wider rope access range. It pairs with the Orbiter T twin pulley and the Orbiter D single pulley.
Key Features
- Certified to EN 12278:2007 and EN 567:2013
- Double alloy pulley for mechanical advantage systems
- Pairs with the Up Lock auto lock pulley
- Both sheaves on ball bearings for smooth running
- Anodised light alloy side plates, cast stainless steel cam
- Takes 8 to 11 mm EN 892 or EN 1891 rope, or 8 mm EN 564 cord
- 6kN working load, 30kN breaking load, 115g
Specifications
| Brand | Climbing Technology |
| Type | Double alloy pulley |
| WLL | 6 kN |
| BLL | 30 kN |
| Weight | 115 g |
| Rope | 8 to 11 mm EN 892 or EN 1891 rope, or 8 mm EN 564 cord |
| SKU | VCT 2P671 |
| Standards | EN 12278:2007, EN 567:2013 |
| Dimensions | 36 mm x 89 mm x 44 mm |
| Colour | Orange |
Product Documents
What is the Up Roll designed to work with?
The Up Roll is a double alloy pulley made to pair with the Up Lock auto lock pulley. Together they create mechanical advantage haul systems on 8mm to 11mm rope for rescue and rope access.
What rope size does it take?
It runs on 8 to 11 mm EN 892 or EN 1891 rope, or on 8 mm EN 564 accessory cord. Both sheaves are mounted on ball bearings, so the rope rolls smoothly and the haul system stays efficient under load.
How strong is it?
The Up Roll has a 6kN working load limit and a 30kN breaking load, and it weighs just 115g thanks to its anodised light alloy side plates and stainless steel cam.
