ISC HALO Rigging Anchor Plates
ISC HALO Rigging Anchor Plates
The HALO rigging plate from ISC is machined from aerospace grade aluminium and gives you one clean anchor point that fans out to many. A central hole is surrounded by six equally spaced attachment points, and each point can hold multiple karabiner connections, so you can build tidy anchors, redirects and multi point rigging without a tangle of slings.
Every hole has smooth machined edges to reduce abrasion on rope and hardware, which protects your kit and keeps the system running cleanly. It comes in three sizes so you can match the plate to the number of connections and the loads involved, from a compact small plate to a large plate with a 70 kN minimum breaking strength. ISC set the three ratings to match their karabiners and prusik pulleys, and every plate is anodised, individually serial numbered and certified to NFPA 1983 (2017 edition) general use. Browse more rigging gear, the wider rope access range, or the full ISC range. It pairs with the CMC Kootenay pulley and the CT steel triple lock karabiner.
Key Features
- Rigging plate with a central hole and six attachment points
- Each point holds multiple karabiner connections
- Smooth machined edges reduce rope and hardware abrasion
- Machined from aerospace grade aluminium, anodised finish
- Three sizes for different loads and connections
- Builds tidy anchors, redirects and multi point rigging
- Certified to NFPA 1983 (2017 edition) general use, individually serial numbered
Specifications
| Brand | ISC |
| Type | Rigging anchor plate |

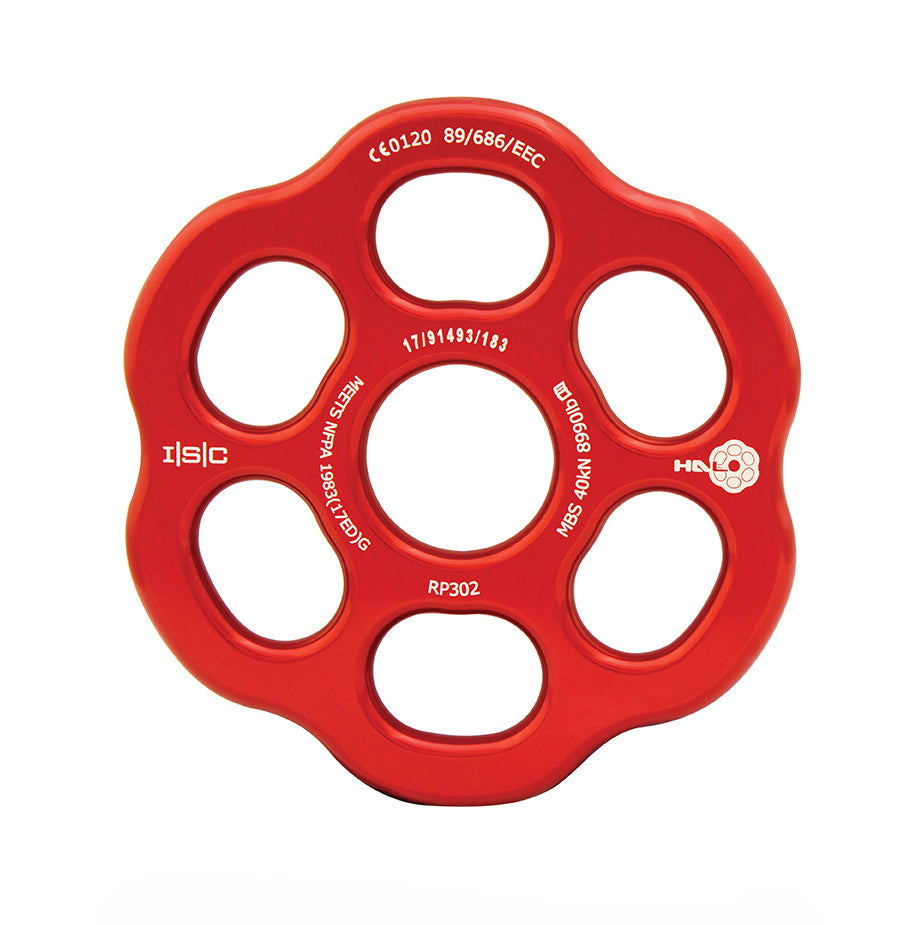

| VISC RP302 (Small) | 40 kN minimum breaking strength, 118 g, 115 mm wide |

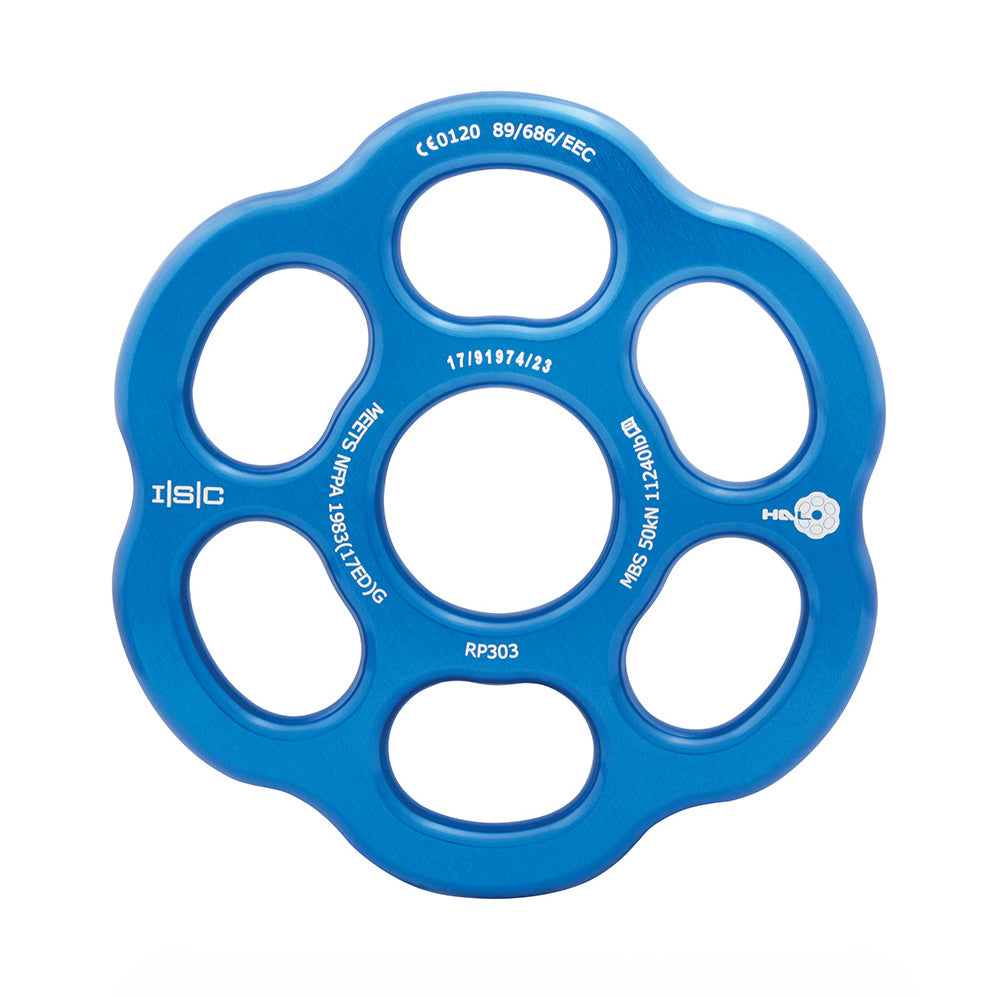

| VISC RP303 (Medium) | 50 kN minimum breaking strength, 221 g, 144 mm wide |

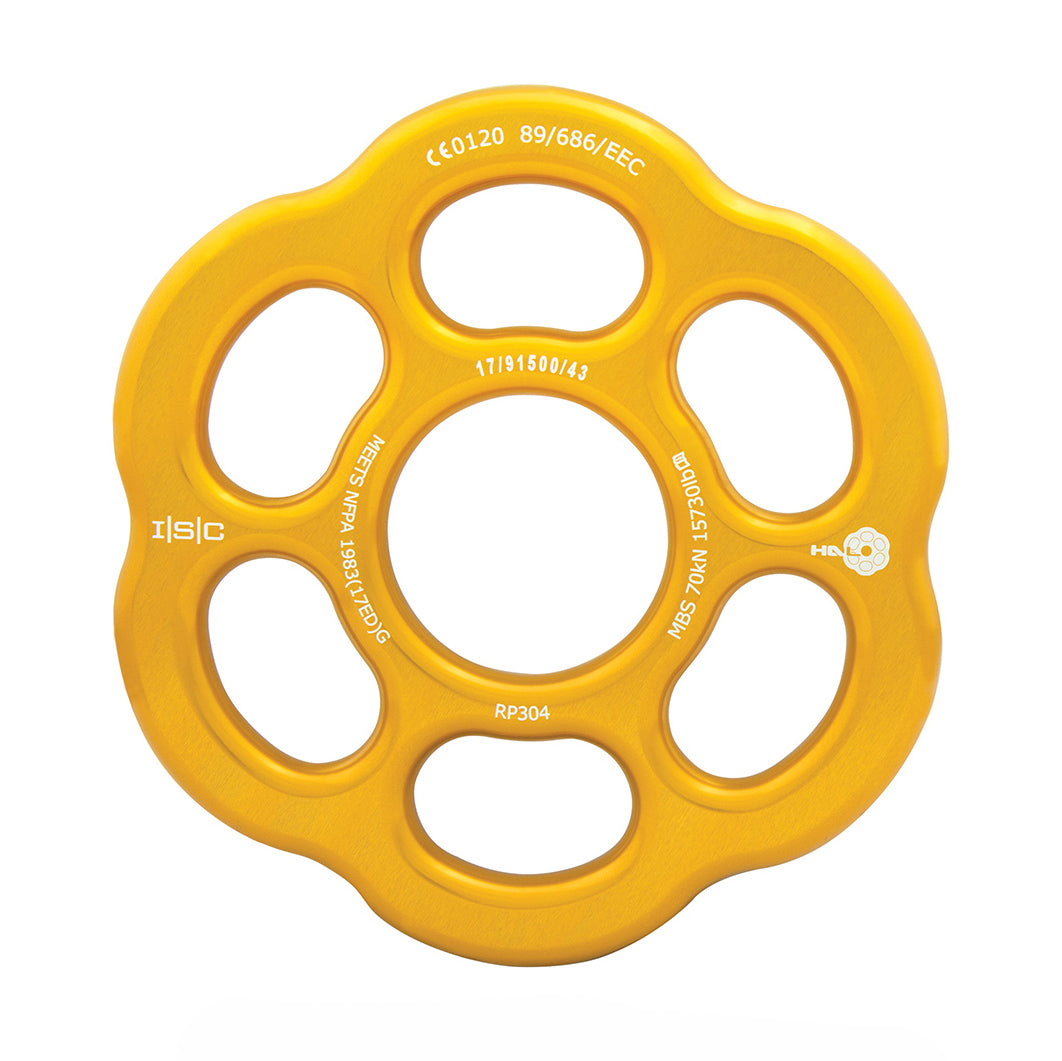

| VISC RP304 (Large) | 70 kN minimum breaking strength, 377 g, 165 mm wide |
| Material | Aerospace grade aluminium, anodised |
| Edges | Smooth machined to reduce abrasion |
| Standards | NFPA 1983 (2017 edition) general use, 89/686/EEC |
| Traceability | Individually serial numbered as standard |
What is a rigging plate used for?
A rigging plate turns one anchor into many. The central hole and six attachment points let you connect several karabiners, so you can build anchors, redirects and multi point rigging tidily without a bundle of slings.
Which size should I choose?
There are three sizes, with minimum breaking strengths of 40 kN (small), 50 kN (medium) and 70 kN (large). ISC set those figures to match the ratings on their karabiners and prusik pulleys, so pick the plate that matches the rest of your hardware and the number of connections you need.
Will it damage my rope?
No. Every hole has smooth machined edges to reduce abrasion on rope and hardware, so the plate protects your kit as it spreads the load.
