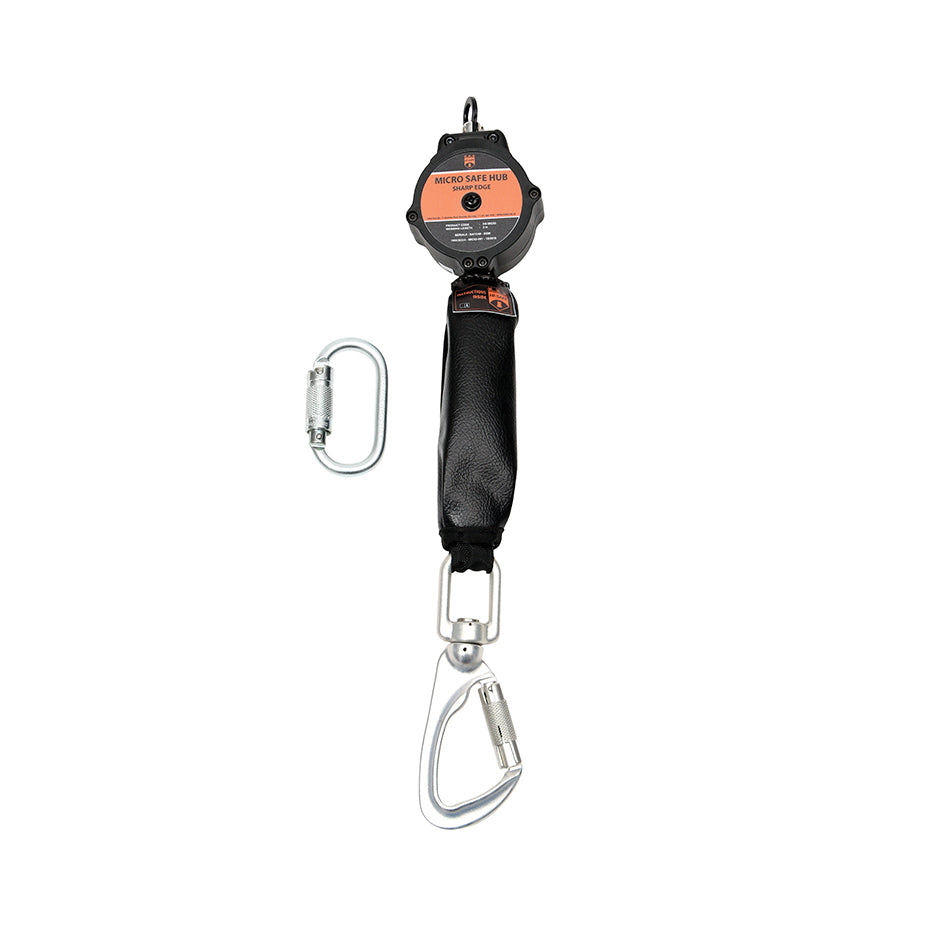

The Hi Safe Micro Hub fall arrest block is a super compact webbing retractable 2 meter lanyard. It is used as a safety lanyard replacement and comes as a single tail or coupled with an SRL connector can become a twin tail self retracting lanyard.
This light, compact fall block deploys at one of the quickest speeds and shortest lock-on times in its class. It is rated for sharp-edge use with fall factor two certification.

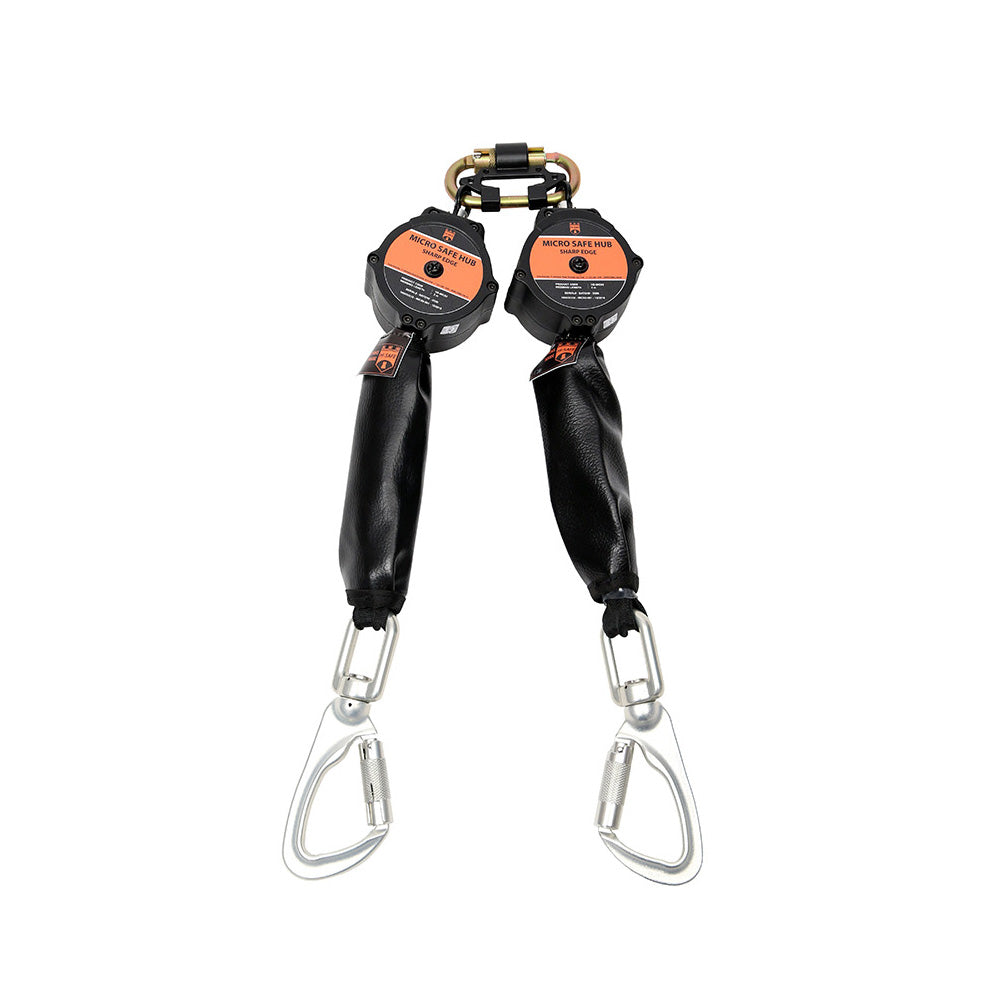

An SRL Connector system combines two Hi-Safe Micro Safe Hubs to link together which create a twin-tail device. Both devices work independently and can be disconnected if required.
FEATURES
- Sharp-edge rated to a radius of 0.5 mm
- Supplied complete with 2 m of Technora webbing that meets new AS/NZS Light Degradation requirements
- Includes integrated energy absorber, triple action swivel karabiner with fall indicator and a separate alloy triplock karabiner (single Micro Safe Hubs only) for anchorage options
Specification |
Single Hub - Triplock |
Dual Hub - Triplock |
Dual Hub - Scaff Hook |
---|---|---|---|
Product Code |
HS-MIC02 |
HS-MIC02-DUAL |
HS-MIC02-DUAL SCAF |
Max Length | 2m | 2m | 2m |
Webbing Width | 21 mm | 21 mm | 21 mm |
Weight | 0.9 kg | 1.7 kg | 2.65 kg |
Max. Weight | 140 kg | 140 kg | 140 kg |
MBS | 15 kN | 15 kN | 15 kN |
