Flexible fall protection for working in confined spaces is now easier than ever with the new JACKPOD davit arm and tripod systems by SKYLOTEC. The portable systems require only a small working base area and are easy to transport and store thanks to their low weight and volume. High-quality finished aluminium and galvanised steel offer high ageing resistance.

Both systems are certified as anchor points according to EN 795, class B with a maximum load capacity of 280 kg (for up to 2 persons with a weight of 140 kg each) and can be combined with winches and fall arrester devices.

Surveys and analyses of trade associations continually attest that many accidents in companies occur at dangerous works that are caused by negligence or insufficient risk assessments.
This especially applies to “confined spaces”, because the term itself is often not accurately defined. Authorities may be trained in expert seminars in order to execute appropriate assessments.
When working in confined spaces like containers, silos or tanks, there are diverse risk potentials. The employers are obliged to make the right arrangements for the safety of their staff.

In two versions, the JACKPOD TRI covers the areas of the vertical entry with a variable height adjustment from 1.2 to 3.1 metres.
When using a winch, for example the JACKPOD WINCH 1, the person is already positioned and working in deeper environments Is no longer a risk.

Useable in combination with a fall arrester device: In case of additional local regulation for the use of a fall arrester device, matching devices, such as the HSG HK10 can be easily combined with the JACKPOD system by an additional roller connected to the system with a carabiner.
There are two lengths of winches available for use with the Jackpod Davit, these being Winch 1 (18 m stainless steel cable and carabiner) & winch 2 (45 m stainless steel cable and carabiner). Each winch will come with the correct mounting bracket for the Jackpod Davit Arm in order for easy installation.
Please choose carefully on the right next to the images as it’s very important to us that you understand what you are purchasing.

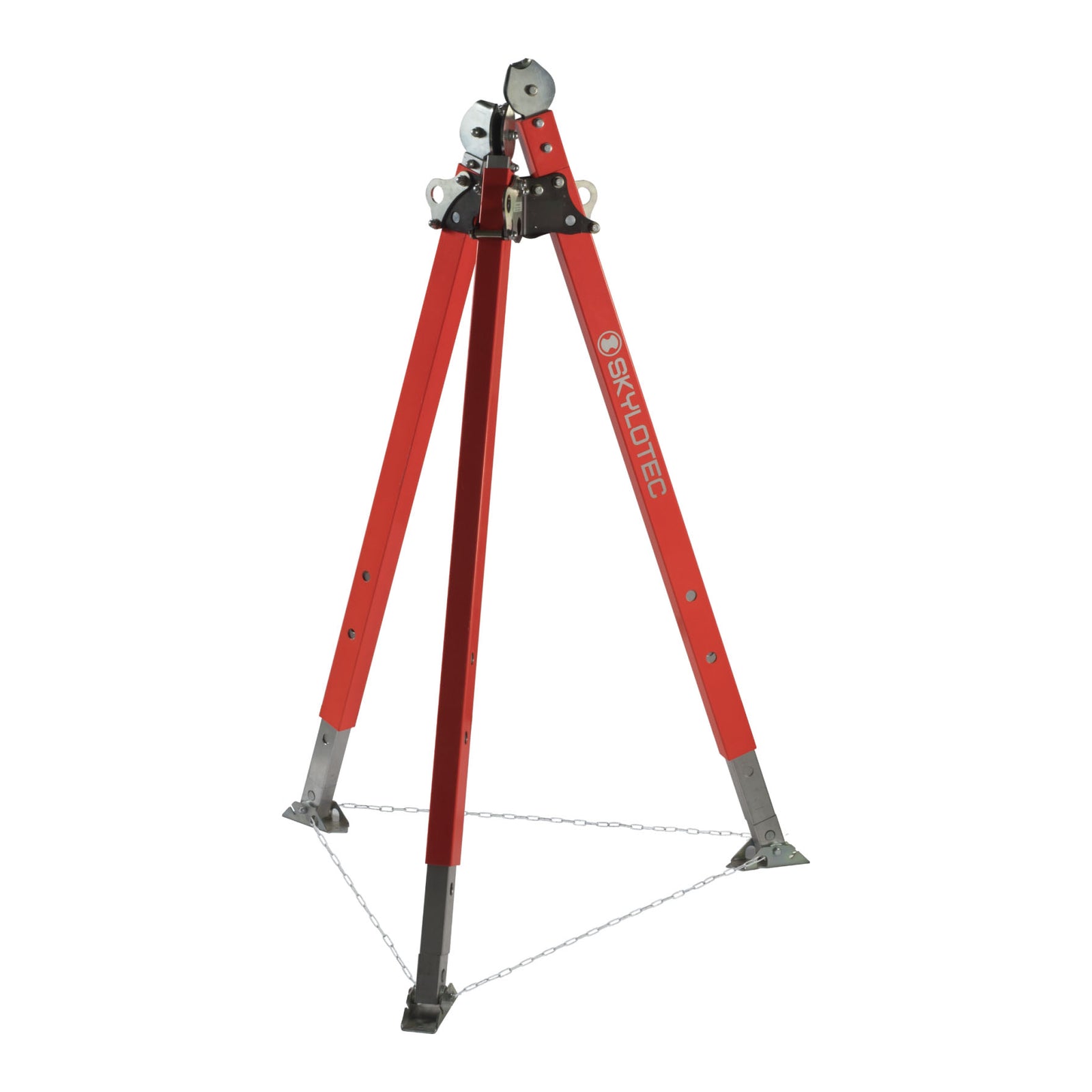

The Jackpod Tri 1 comes with 1 deflection pulley and its heights are 1220 - 2260 mm. Its opened circumference is Ø 1040 mm - 1800 mm
The Jackpod Tri 2 comes with 3 deflection pulleys and its heights are 1550 - 3020 mm. Its opened circumference is Ø 1040 mm - 2250 mm
