Ferno ArachniPOD - ArachniPOD Total Edge Management Systems (TEMS)

Brand: Ferno

Product Code: APOD-TEMS

Availability:In stock

Available Options

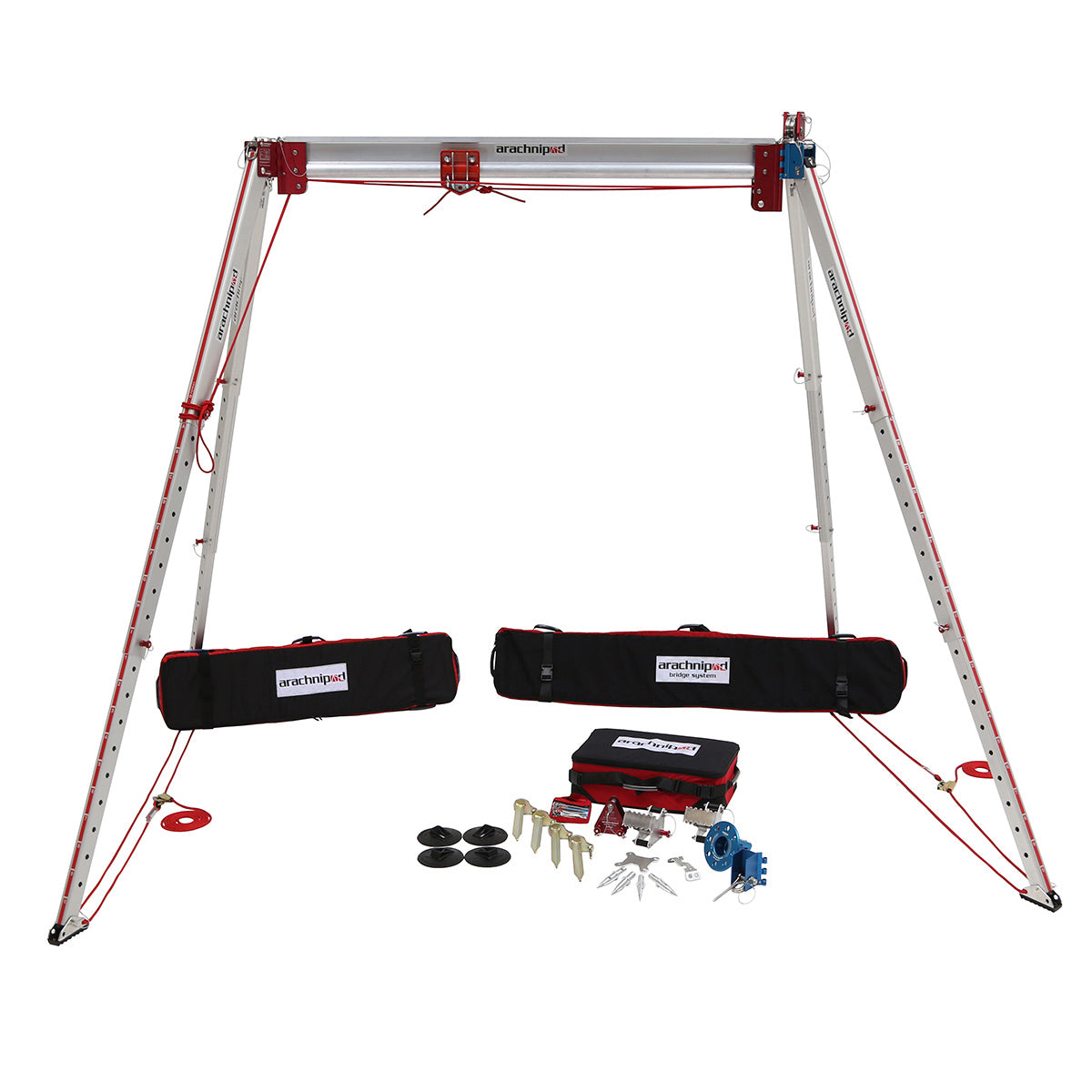

The Ferno ArachniPOD TEMS is the world’s most versatile modular total edge management system and is the ultimate ArachniPOD package to enable access or management of virtually every edge and confined space scenario.

The unique design of the patent-pending modular head means the ArachniPOD can be constructed into many different configurations including a ginpole/monopole, bipod, tripod, quadPOD, bridge system and handrail recovery monopole. Four legs can used to form a quadPOD which will safely increase the working load (SWL).

It includes a Bridge System which is a unique feature of the ArachniPOD capable of spanning larger voids, trenches and openings. This package also includes the Full accessory kit containing a comprehensive collection of accessories that aid with a variety of configurations and enhance workflow.

Its versatility makes it an ideal system for workers in industries such as rescue and emergency services, construction, military, utility services, mining, film and maintenance.

The ArachniPOD's uniquely designed head system enables legs to be quickly disconnected from each other to store flat for compact storage and transportation. Each of the legs is supplied with an upgraded Standard Foot 2.

Features

  • Rectangular, adjustable legs with leg pins
  • Each leg includes a stabilisation attachment point
  • Three stainless steel swivel eye bolt anchor points
  • Bridge beam includes a trolley, trolley-positioning line and heads
  • One stainless steel double-grooved pulley accommodates 8mm steel wire rope and fibre rope up to 13mm

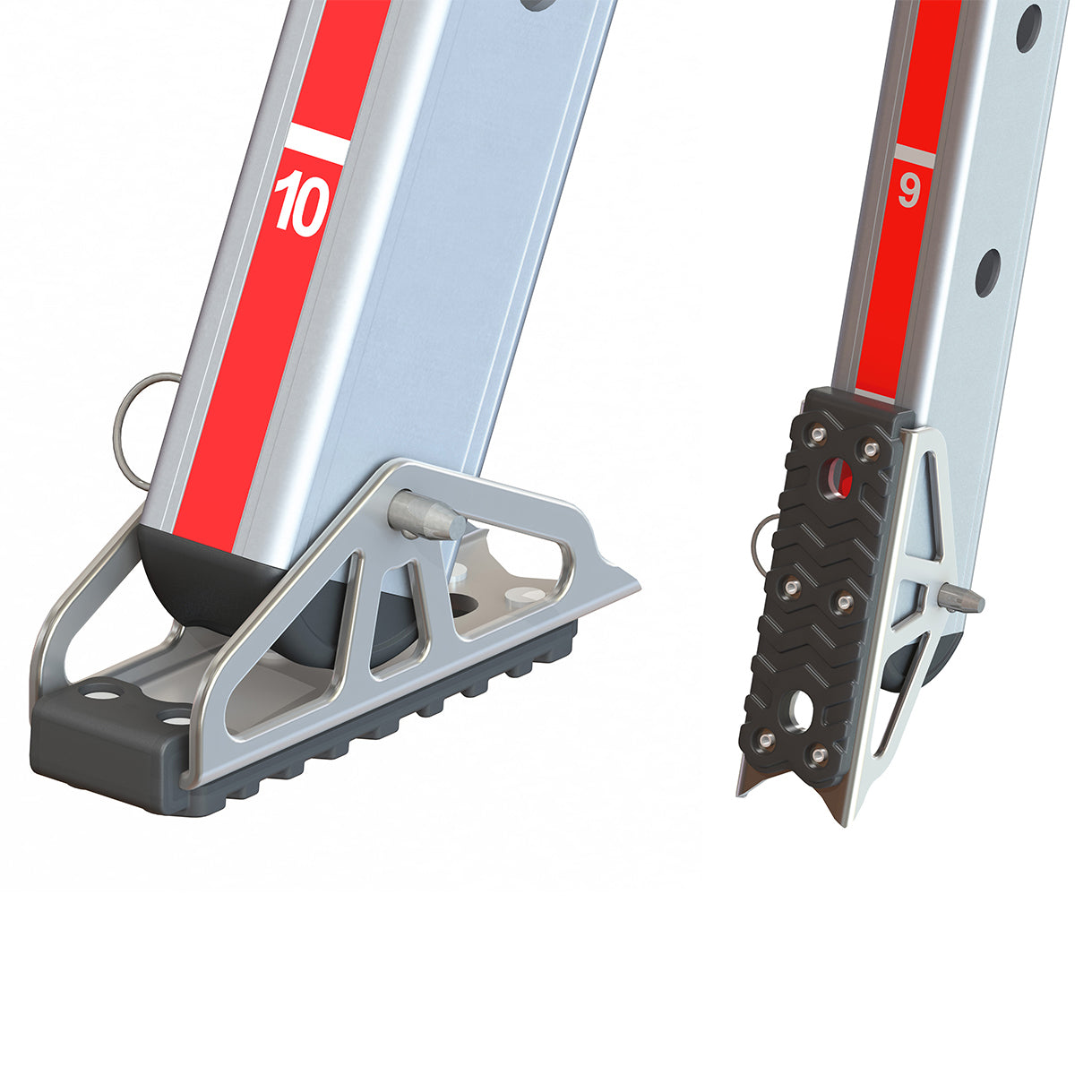

  • Upgraded Standard feet suits both flat and uneven surfaces, pivot to adjust to ground variations and incorporate an aggressive non-slip tread pattern

Inclusions

  • 2 x Standard Legs feature rated load attachment points that swivel 360 degrees, along with an additional D-shackle attachment point for stabilisation rigging
  • 1 x  Pulley Leg incorporates a pulley designed to accommodate up to 13 mm fibre rope as well as up to 8 mm steel/stainless steel wire cable rope
  • 1 x Lazy Leg which also converts to a Standard Leg

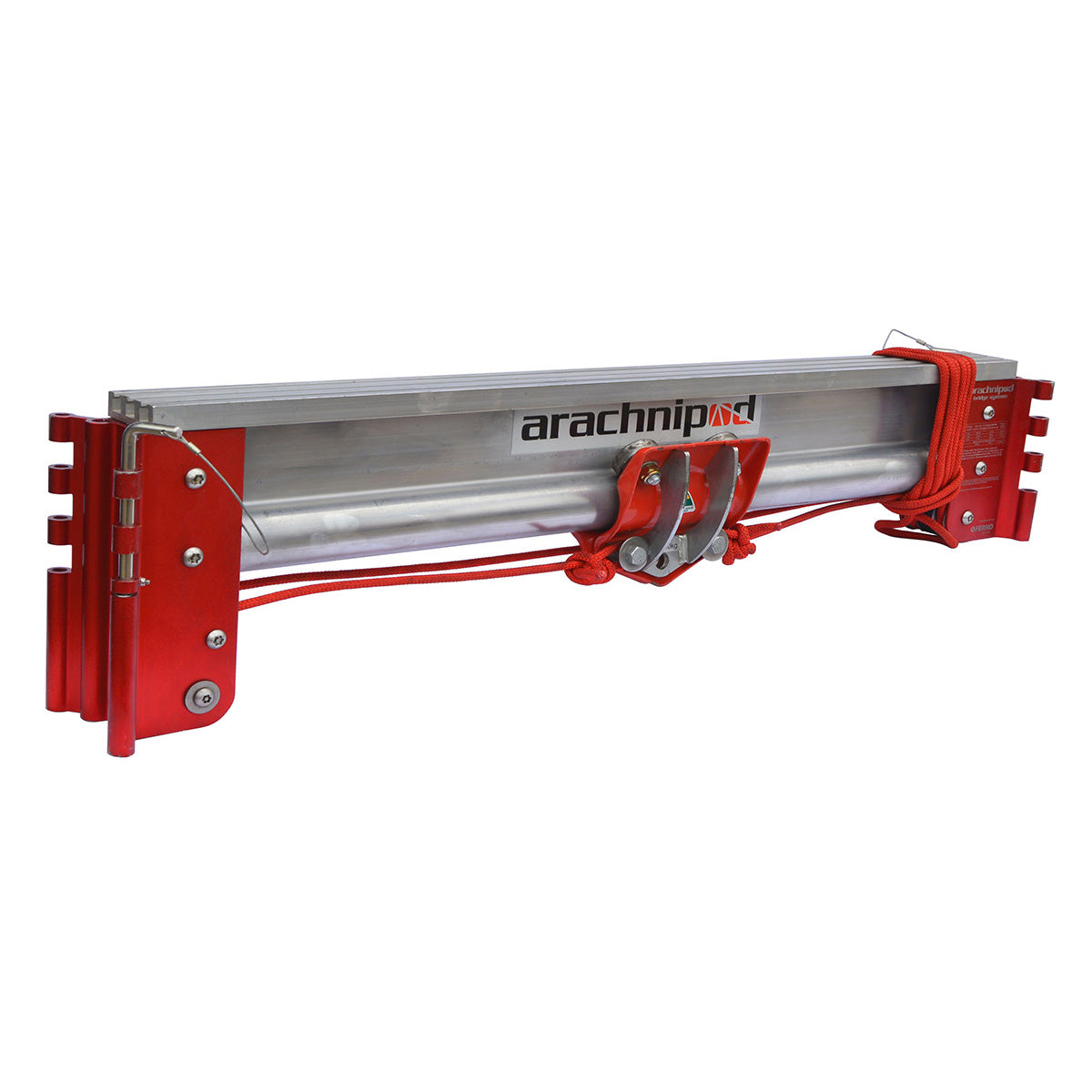

  • 1 x Bridge Beam - 2m, 3m or 4m length
  • 2 x Feet Rope and Rope Grab
  • 1 x Transport Bag
  • 1 x Bridge Bag

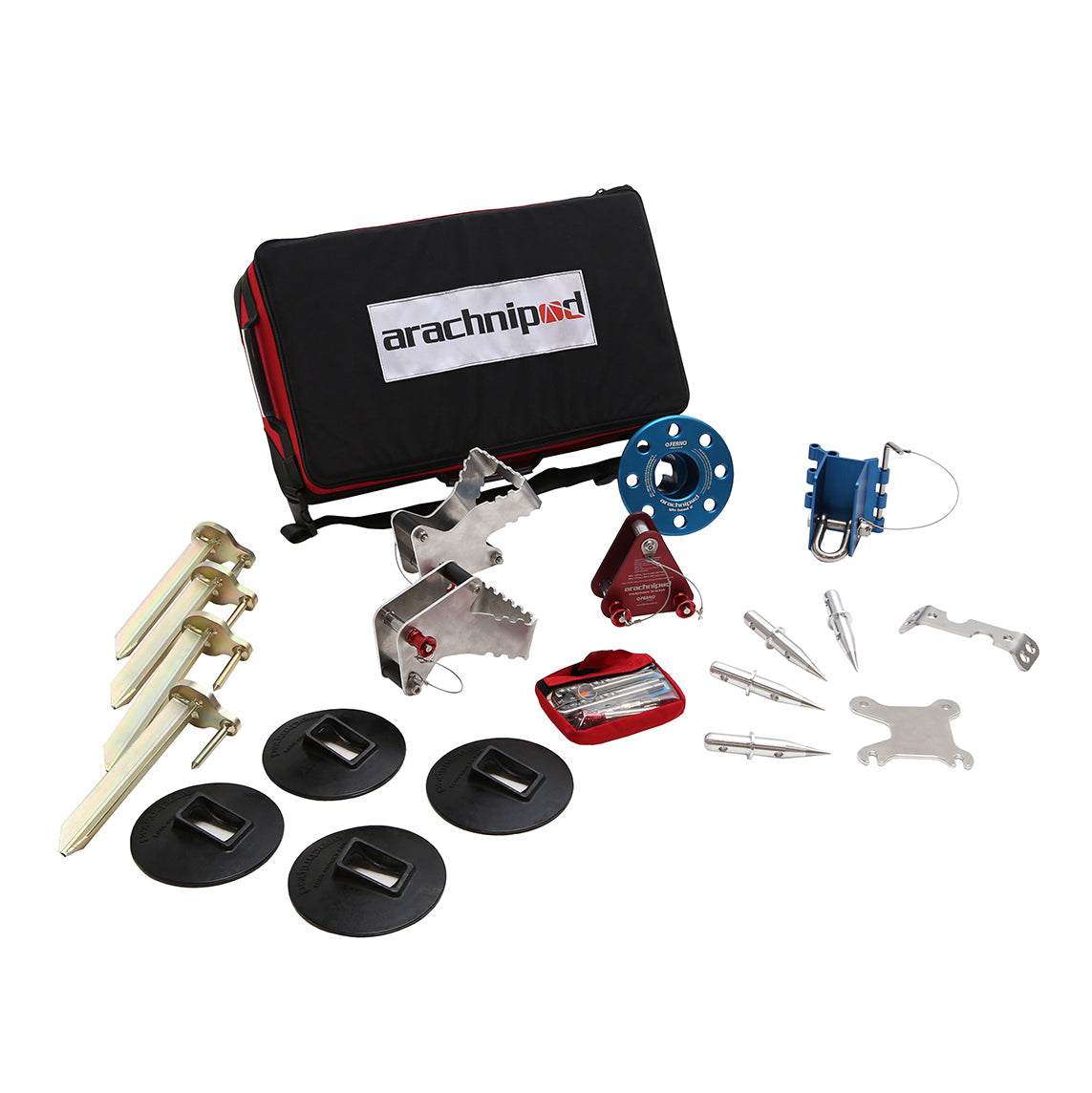

  • 1 x Full Accessory Kit containing Transport Bag, 4 Hold Down Stakes, 4 Reversible Spike Feet, 8 M12 Tru-Bolts, 4 Soft Ground Shoes, 2 Steps, an Equipment Bracket, Gin Head, Reverse Head, Rigging Plate, Quad Plate and a variety of spare parts.

The ArachniPOD TEMS can be configured into

  • Tripod
  • Bridge System
  • Handrail Recovery Monopole
  • Quadpod (Quad Plate required - supplied)
  • A-Frame (Rigging Plate required - supplied)
  • Sideways A--Frame (Rigging Plate required - supplied)
  • A-Frame with Lazy Leg (Quad Plate and Reverse Head required - supplied)
  • Gin / Monopole (Gin Head required - supplied)

Arachnipod TEMS Specification
