Ferno Evac Rescue Descent Kit - Mark Elephant HUB

Brand: Ferno

Product Code: UL-MINIEVAC2PKIT

Availability:In stock

The Evac Rescue Descent Kit from Ferno is the easiest rescue kit on the market to setup and use. The kit is setup ready for rescue eliminating rigging set up time.

These kits contains all the gear you need for a self-rescue or to evacuate one to two people from wind turbines, towers, masts, high bay lift trucks, cranes or similar work at height rescue scenarios.

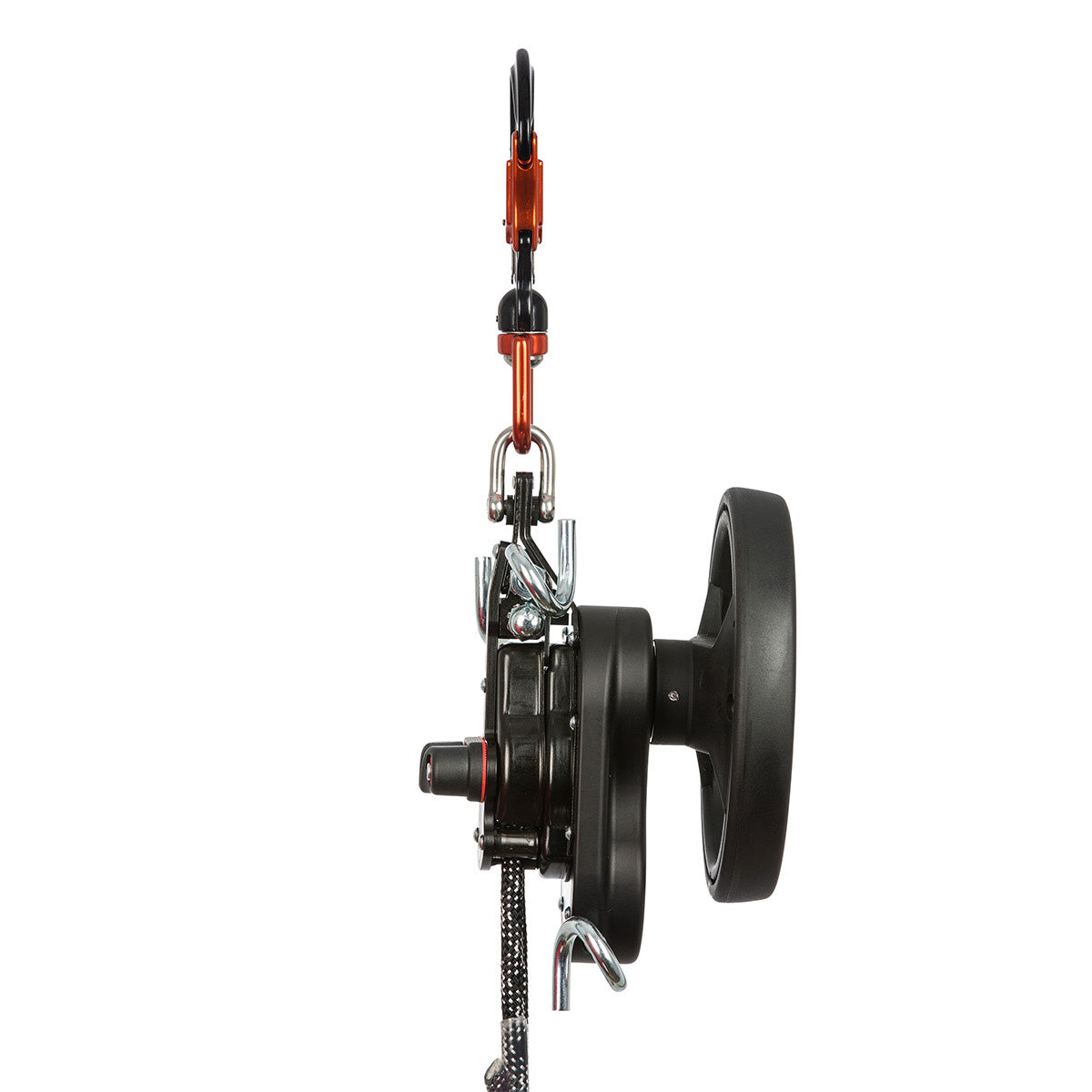

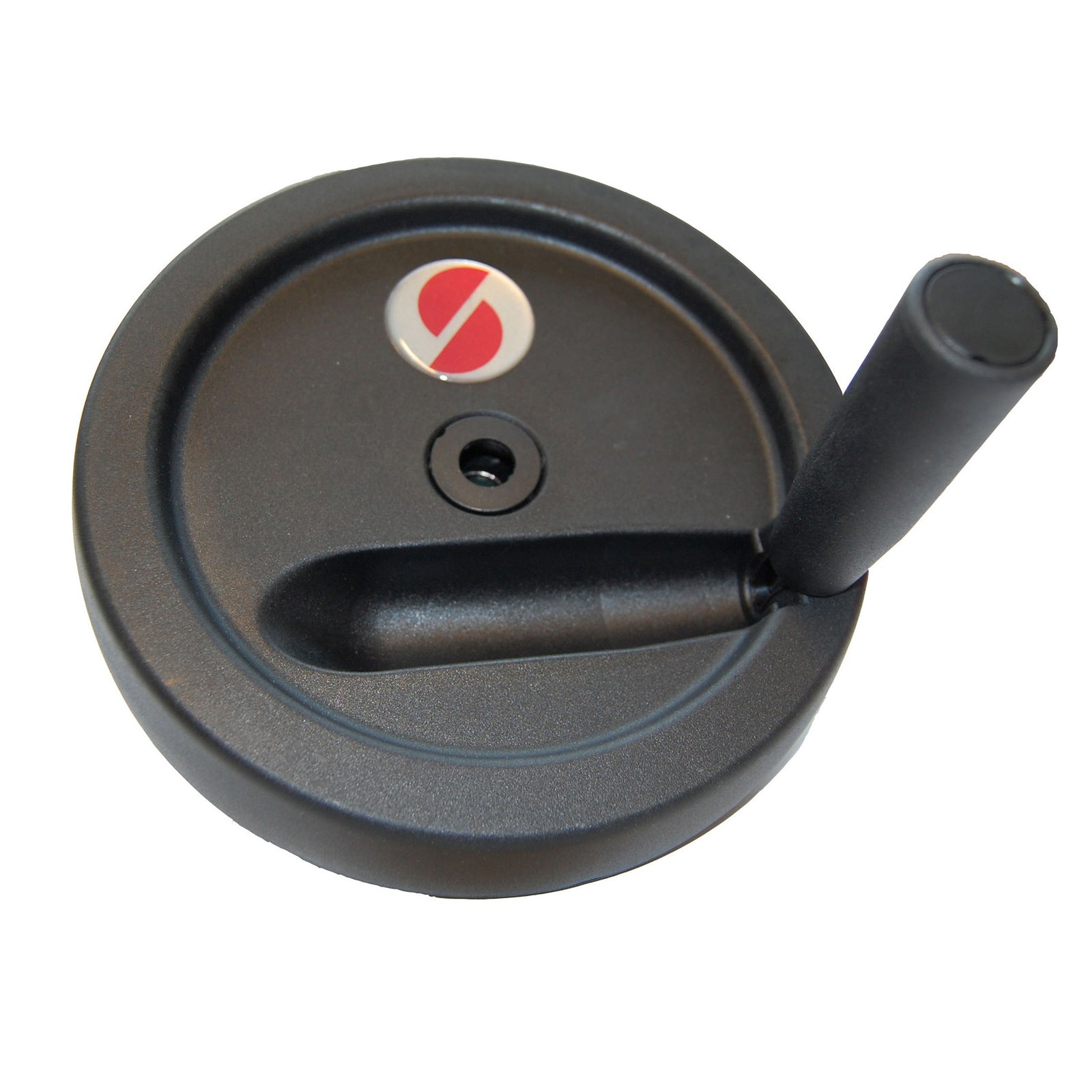

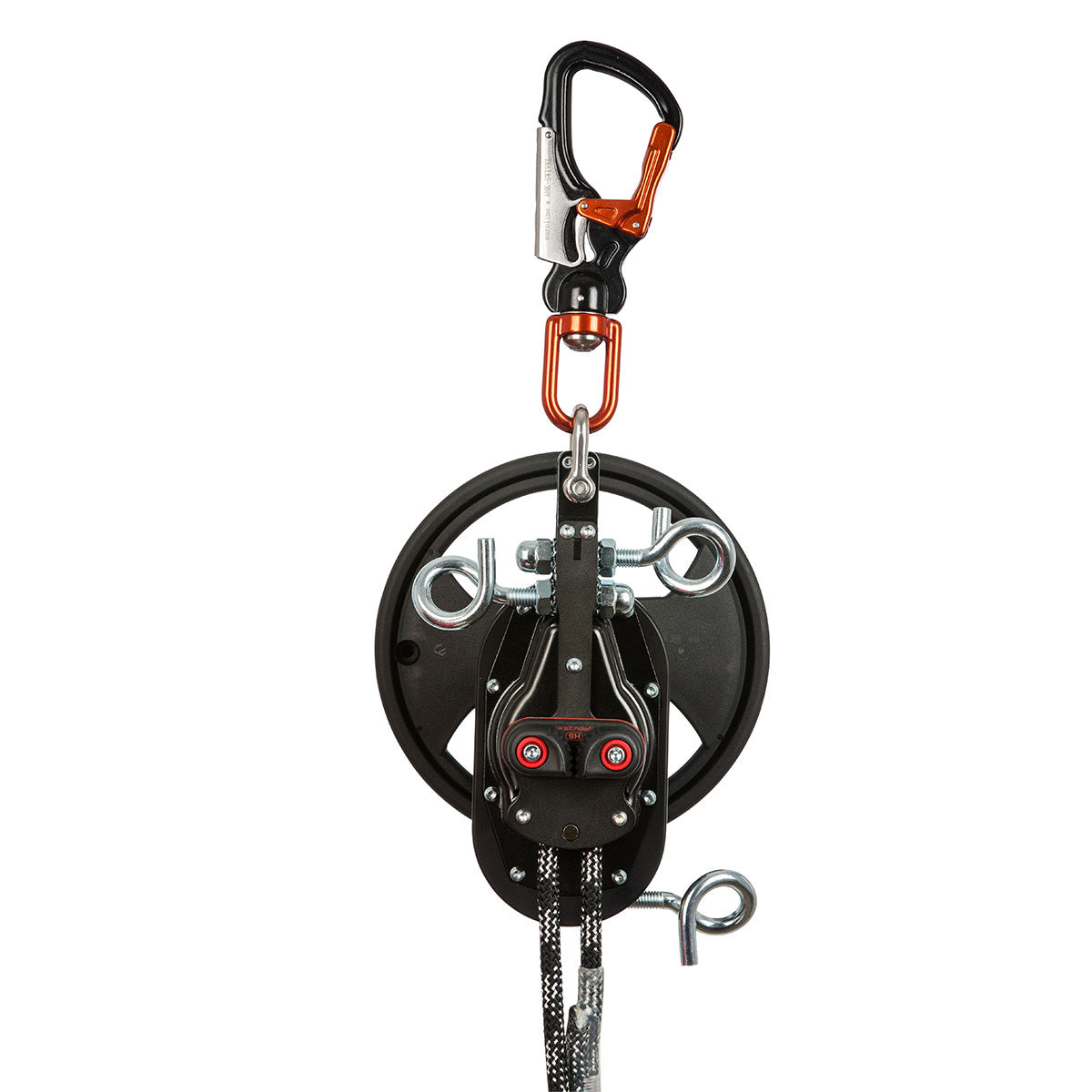

The Evac kit features a MARK Elephant Hub controlled rate descent device with a hand wheel. The geared recovery mechanism provides lifting capabilities for either one or two persons and self-rescue evacuation. The hand wheel can be operated manually via the outside of the wheel or by using the pull out handle. A battery drill can also be used on the centre nut for faster ascent or descent.

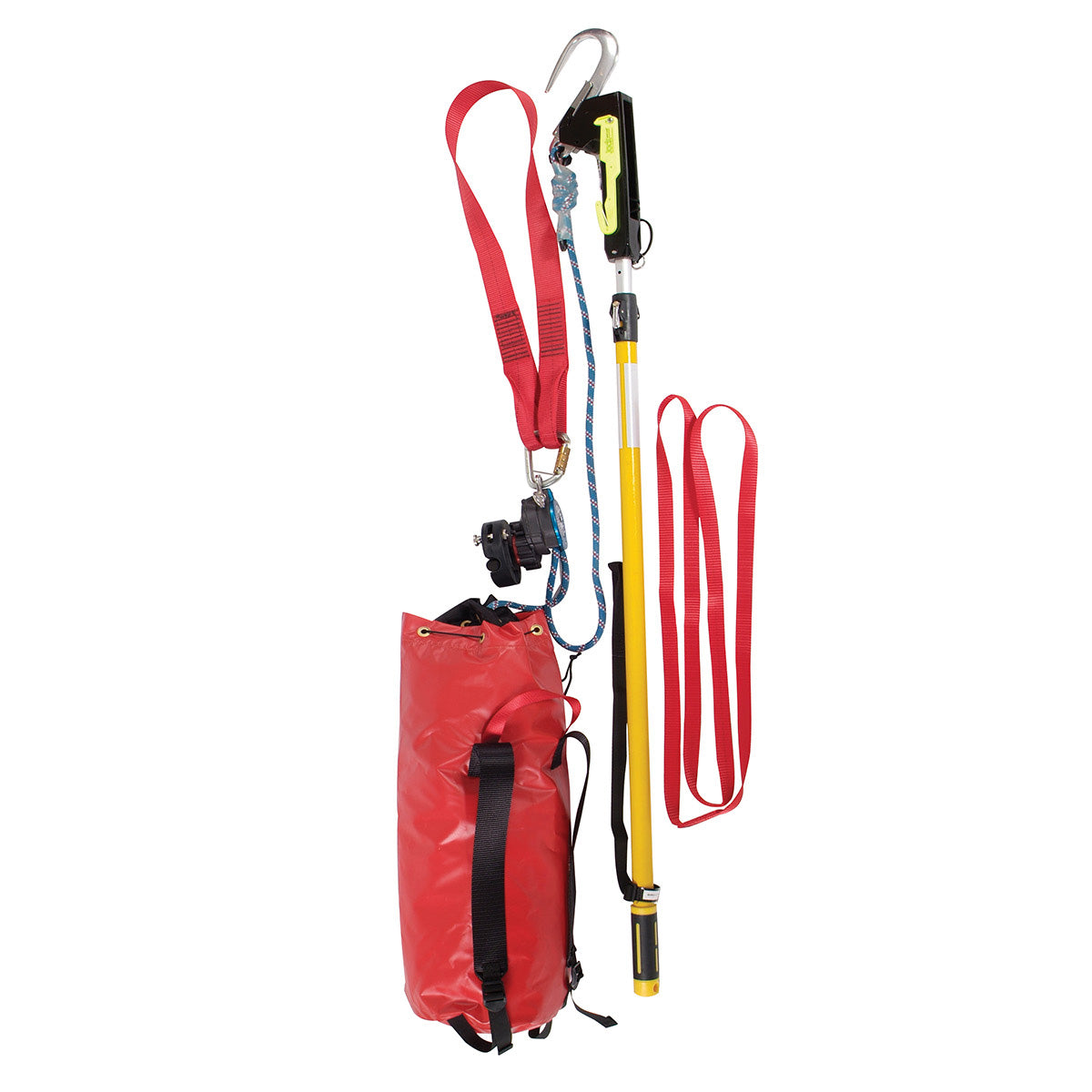

Inclusions

  • 1 x Heavy Duty Rope Bag (100 m)
  • 1 x Karabiner Steel Triplock 50kN
  • 50 mtrs of 9.6 mm Kernmantle Rope
  • 1 x Ferno Res-Q-Link Recovery Pole
  • 1 x Round Sling 32kN 25 mm x 1500 mm
  • 1 x Flat Snake Sling 30kN 50 mm x 1500 mm
  • 1 x Mark Elephant Rescue Descent Hardware

Features

  • A controlled rate descent device with a hand wheel, geared recovery mechanism that provides lifting capabilities for either one or two person or self-rescue evacuation.
  • The standard kit is supplied with 50 metres of 9.6 mm Kernmantle rope.
  • Customised rope lengths up to 300 m can be ordered.
  • The hand wheel can be operated with a hand drill if required.

Specifications

  • Maximum load 225kg
  • Descent speed: approx. 0.8m/sec
  • Descent height: a max. of 300m
  • Housing: steel/aluminium combination
  • Brake system: automatic, redundant brake system with 2 fly wheel brakes, steel brake drums
