Ferno Fixed Beam Anchor - Screw Type
Ferno Fixed Beam Anchor Screw Type

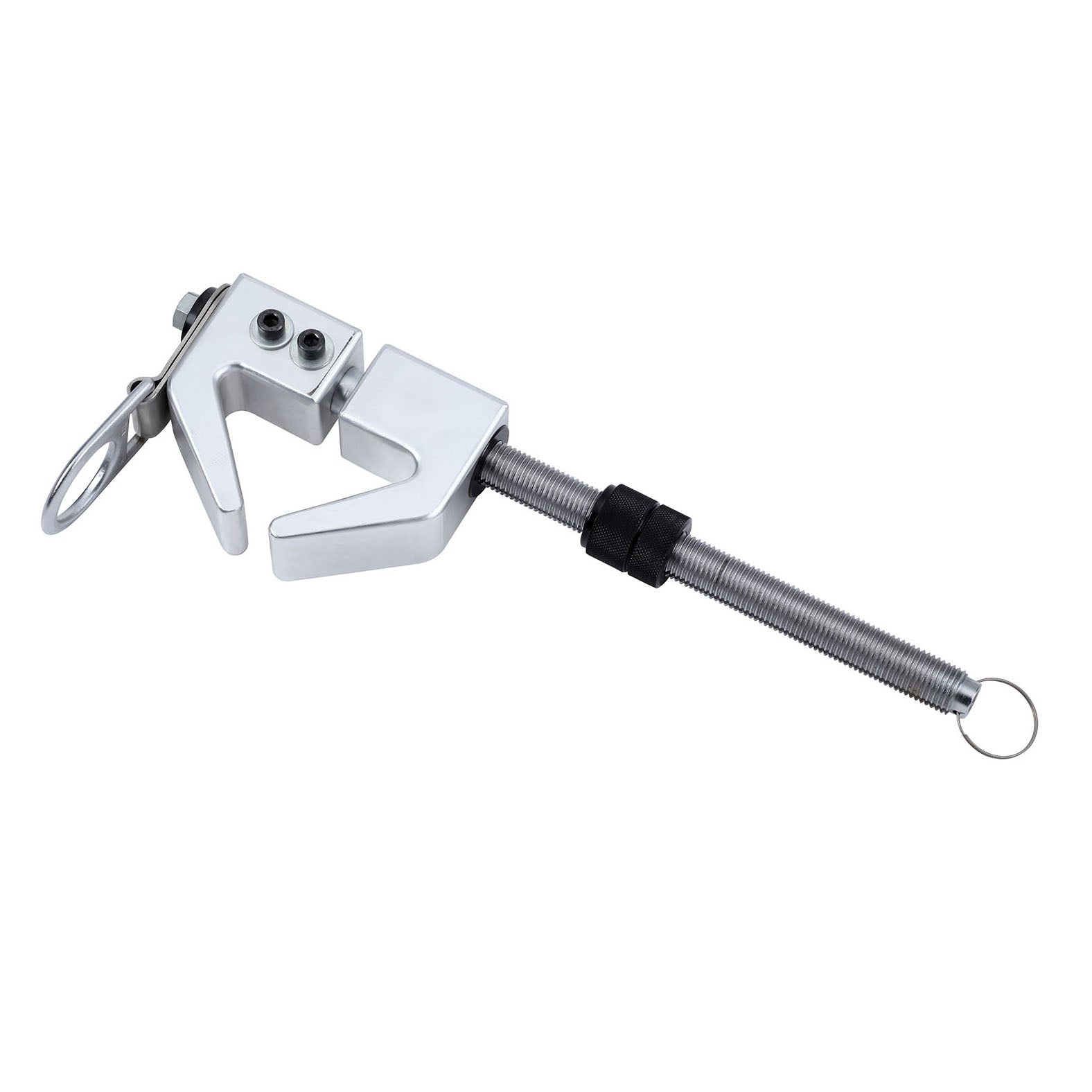

The Ferno fixed beam anchor provides a secure anchor point for fall arrest and safe work at height on structural steel. The screw type clamp fits I and H beam flanges from 125 mm up to 300 mm wide with a flange thickness up to 23 mm, which covers most common structural steel.
It is manufactured from high grade anodised alloy, weighs 4.71 kg and carries a 12 kN minimum breaking strength for single person limited free fall arrest. It meets EN 795:2012 Type B. Fit it to the beam, connect your device, and you have a rated attachment point where no permanent anchor exists. It is designed to be used with a self retracting lifeline or a fall arrest lanyard only. Browse more roof anchors, other temporary anchor points, or the full Ferno range. It pairs with the Minifix anchor points and the SK12 rope line.
Key Features
- Secure anchor point for fall arrest on steel beams
- Fits I and H beam flanges from 125 mm to 300 mm
- Suits flange thickness up to 23 mm
- High grade anodised alloy construction
- 12 kN minimum breaking strength, single person limited free fall arrest
- For use with a self retracting lifeline or fall arrest lanyard
- Meets EN 795:2012 Type B, weighs 4.71 kg
Specifications
| Brand | Ferno |
| Type | Fixed beam anchor, screw type |
| Beam width | 125 mm to 300 mm |
| Flange thickness | Up to 23 mm |
| Rating | 12 kN minimum breaking strength, single person limited free fall arrest |
| Material | Aluminium alloy jaws, steel alloy screws, support bar, hanger and D ring, anodised finish |
| SKU | FWE-YAA003 |
| Standard | EN 795:2012 Type B |
| Weight | 4.71 kg |
What beams does it fit?
The screw type clamp adjusts to fit I and H beam flanges from 125 mm up to 300 mm wide, with a flange thickness of up to 23 mm, which covers most common structural steel. Check the flange before you fit it: outside that range the clamp cannot be relied on.
What is it rated to?
It carries a 12 kN minimum breaking strength for single person limited free fall arrest, meets EN 795:2012 Type B and is manufactured from high grade anodised alloy. It weighs 4.71 kg.
What can I connect to it?
It is designed to be used with a self retracting lifeline or a fall arrest lanyard only. It gives you a rated anchor point on steelwork where no permanent anchor is installed.
