The PURLINlok Roof Anchors from Ferno are a permanently mounted purlin anchor system to suit most roof structures. They are available with a variety of base plate profiles including, Corrugated, Trimdek and Flat.
The Ferno PURLINlok comes with the ANCHORsafe Shock Limiter, a 360 degree swivel attachment device that provides the user with uninterrupted access to their work area. The ANCHORsafe absorbs the force or a shock load sustained in the event of a fall.
Features:
- Quick and easy installation process
-
Meets the requirements of AS/NZS1891.4
- Supplied with ANCHORsafe Shock Limiter
- Rated at 22 kN fall arrest for two person use
- Absorbs the shock load in the event of a fall
- Swivels 360 degree for uninterrupted access
- Variety of base plates for most roof structures
- Stainless steel construction for durability and longevity
- Inspection tag with an individually engraved serial number
- Supplied with sealing tape, purlin setting block and string applicator

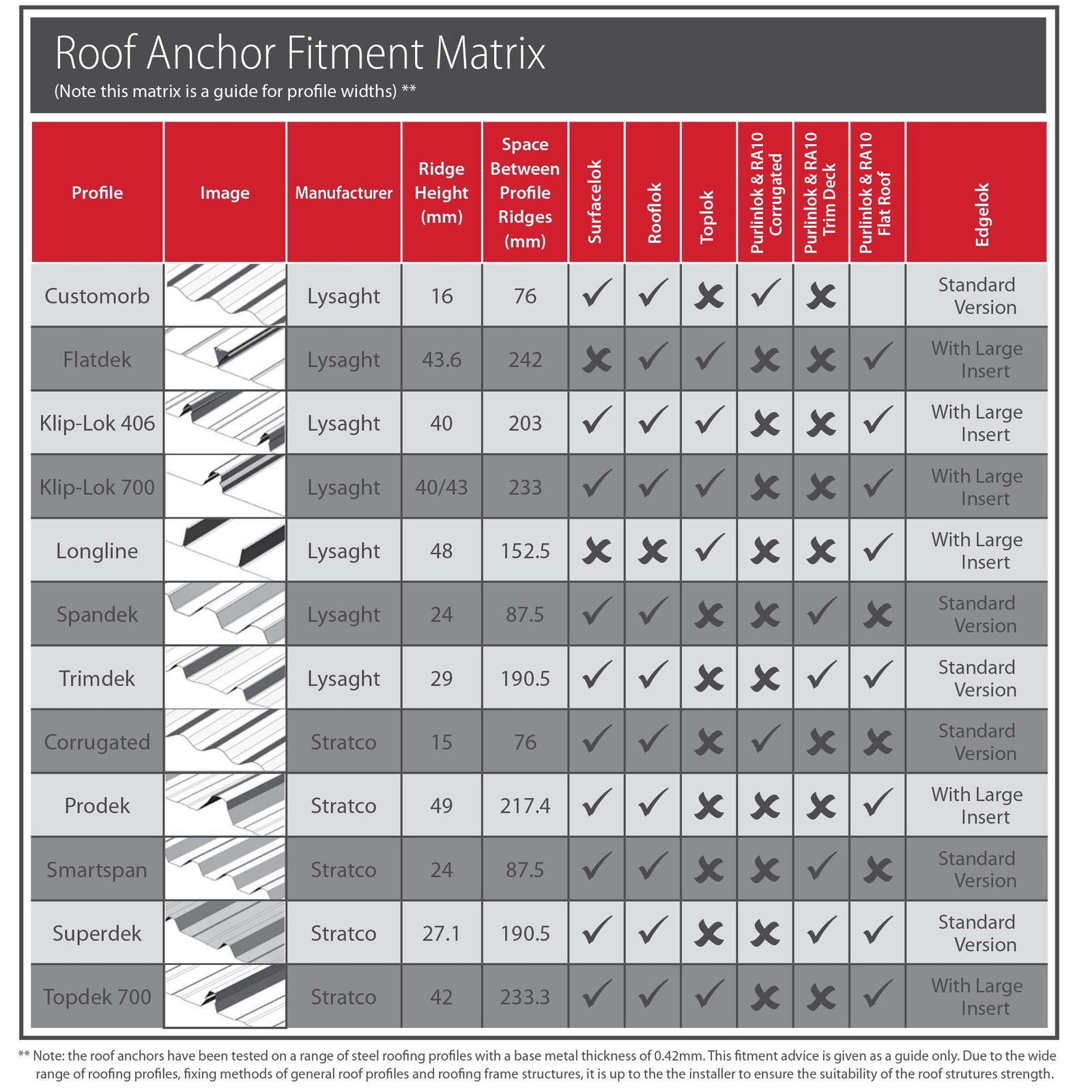

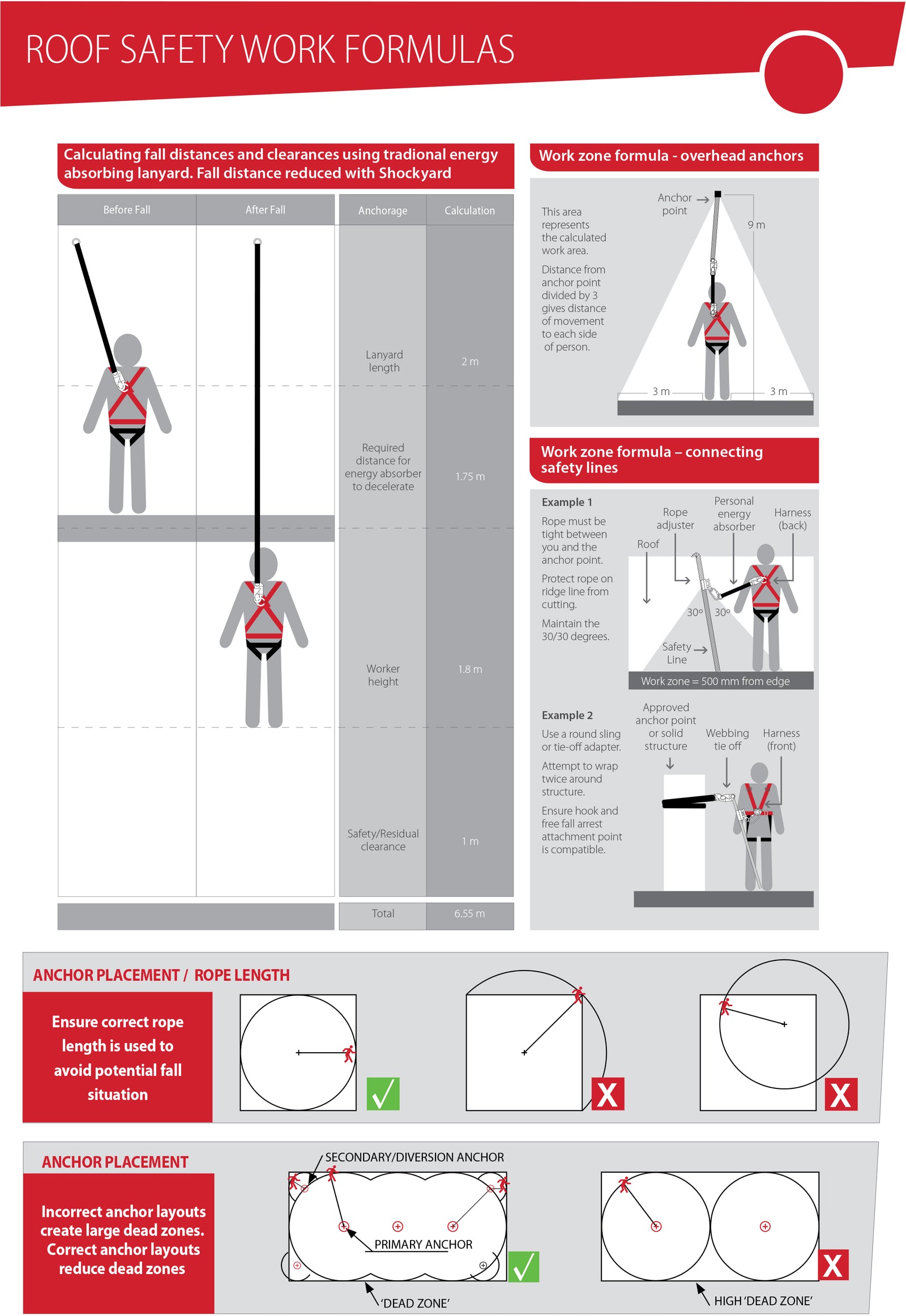

- See roof anchor selector and roof safety formulas attached below
Version Codes:

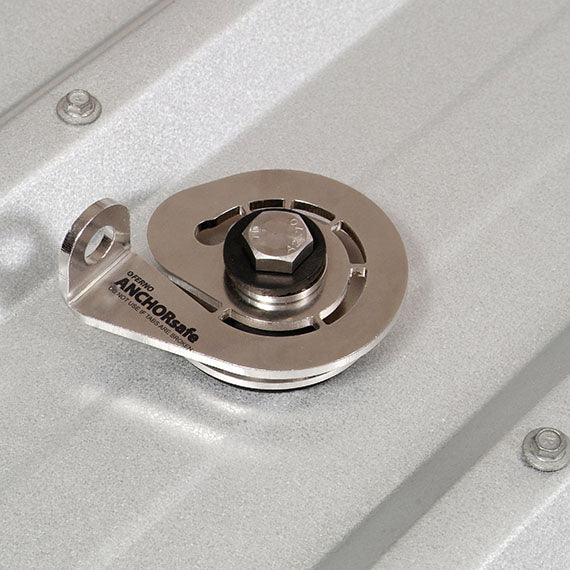

FWE-PL FLAT (flat roof)

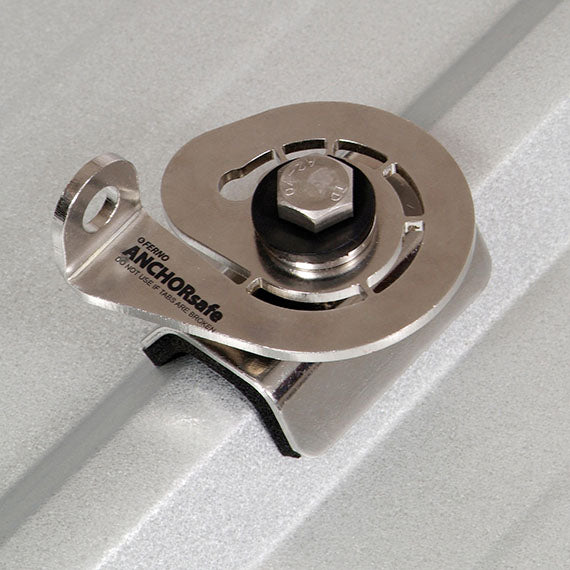

FWE-PL TRIM (trim deck)

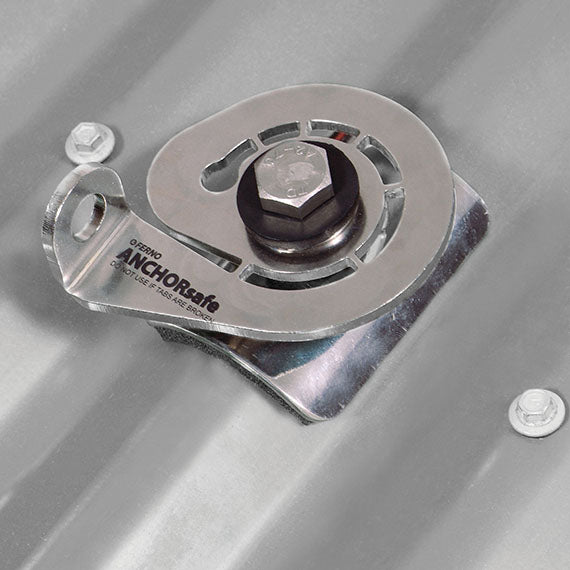

FWE-PL CORR (corrugated)
*Must be used with a personal energy absorber and lanyard system. Any roof structure must be inspected by a competent person and deemed strong enough to yield the required forces prior to application. If in doubt consult an engineer for clarification.
