Honor Star Series Man-Riding Confined Space Rescue Winch
Model

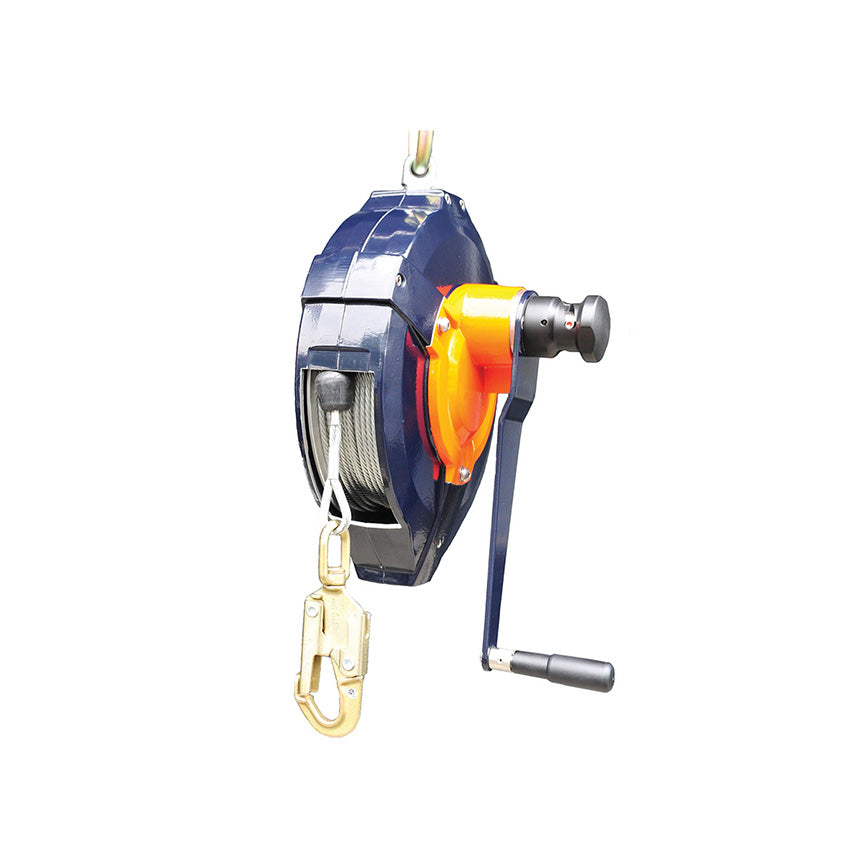

The Honor man riding winches MRW15 & MRW33 allow users to descend or hoist in a controlled manner. They have a double redundant braking mechanism with a back up Fall Arrest Brake. These winches are made using high-quality, corrosion-resistant parts.
Model

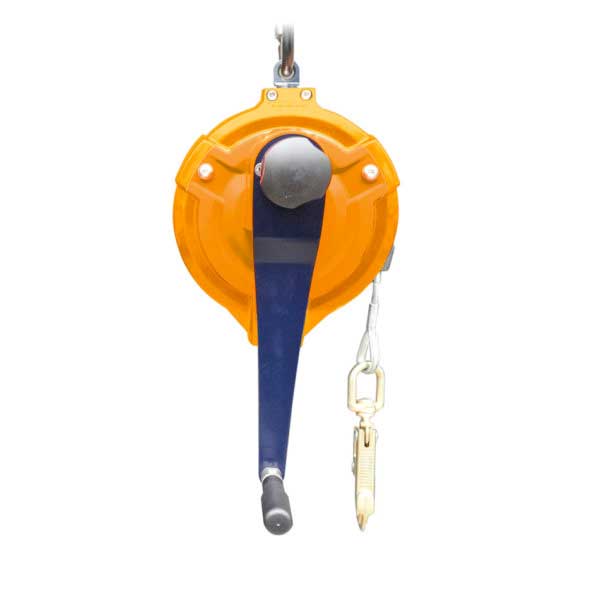

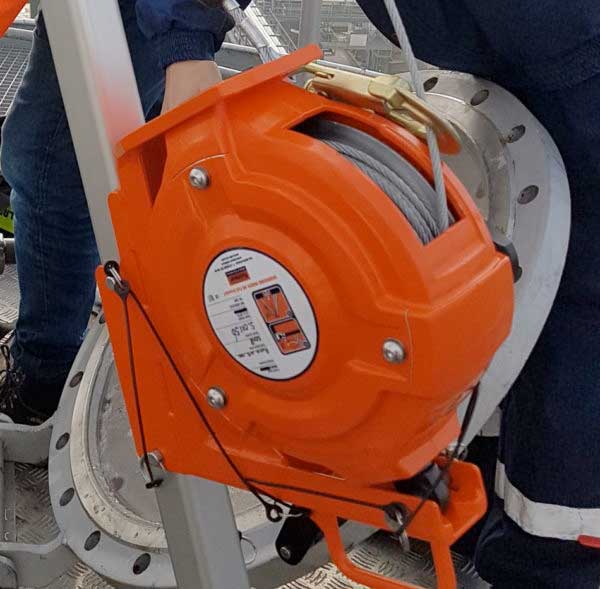

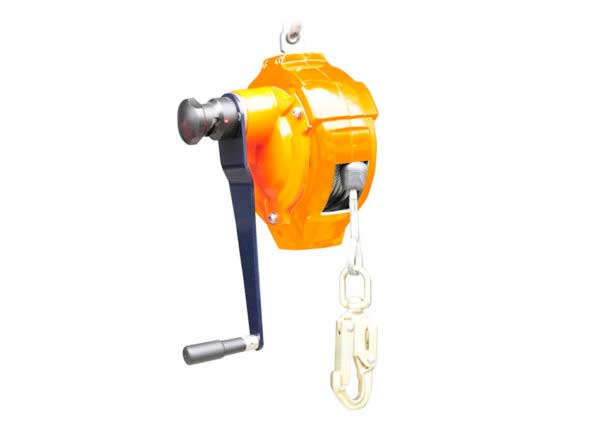

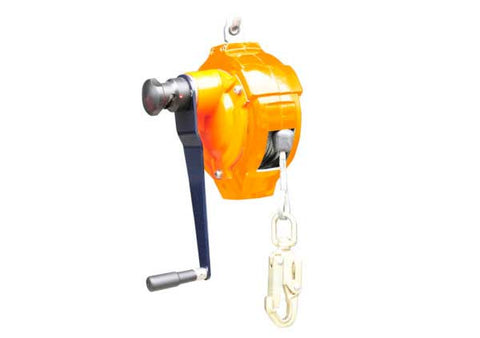

- MRW15
- Weight - 11.5kg
- Cable length - 15 Meters
- Cable Dia - 5mm Galvanised

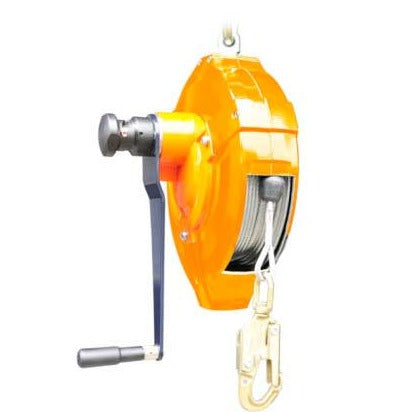

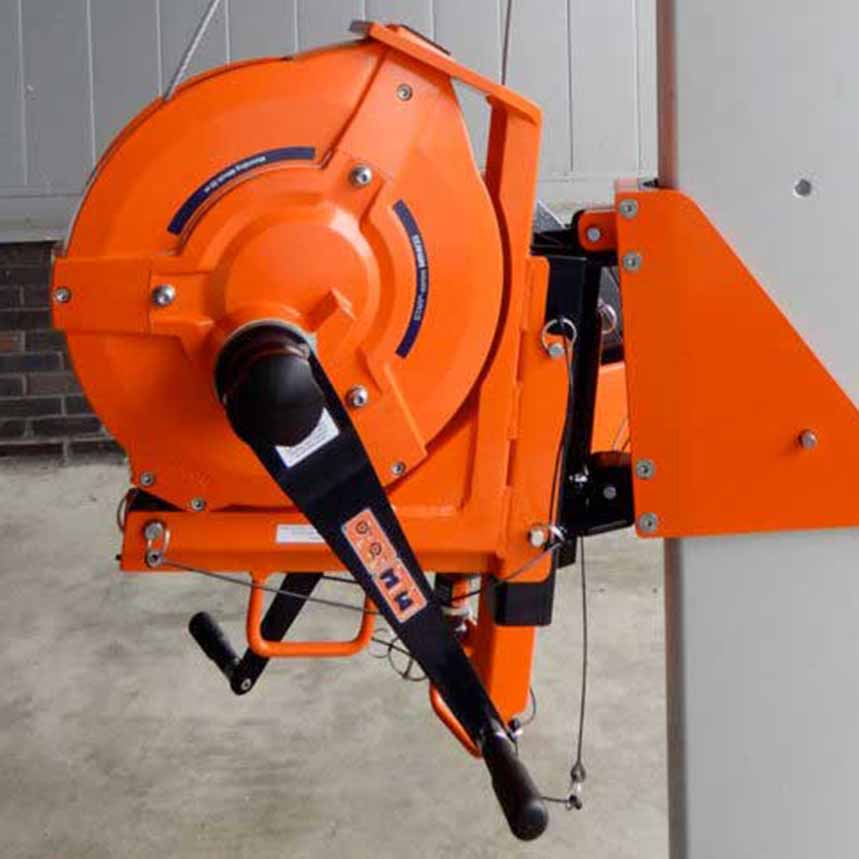

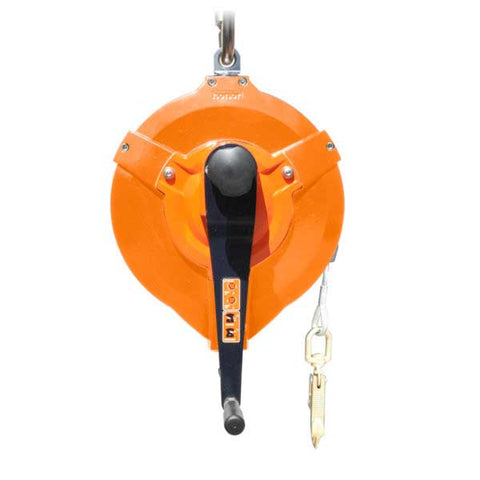

- MRW33
- Weight - 19.5kg
- Cable length - 33 Meters
- Cable Dia - 5mm Galvanised
Features
- Maximum capacity - 150 kgs
- Very low occurring fall forces
- Gear ratio 5:1 (no power source required)
- Modular quick-response fall arrest brake
- Minimum fall arrest distance (braking distance)
- Required winch force: approx. 10 daN at 150 kg
- Automatic exit and rolling lifeline (deactivated winch)
- STAR-series patented and modular appliance design
- Integrated, manual winch function (hoisting and descending)
- World leading fall arrest capture times with very low kN forces in a fall

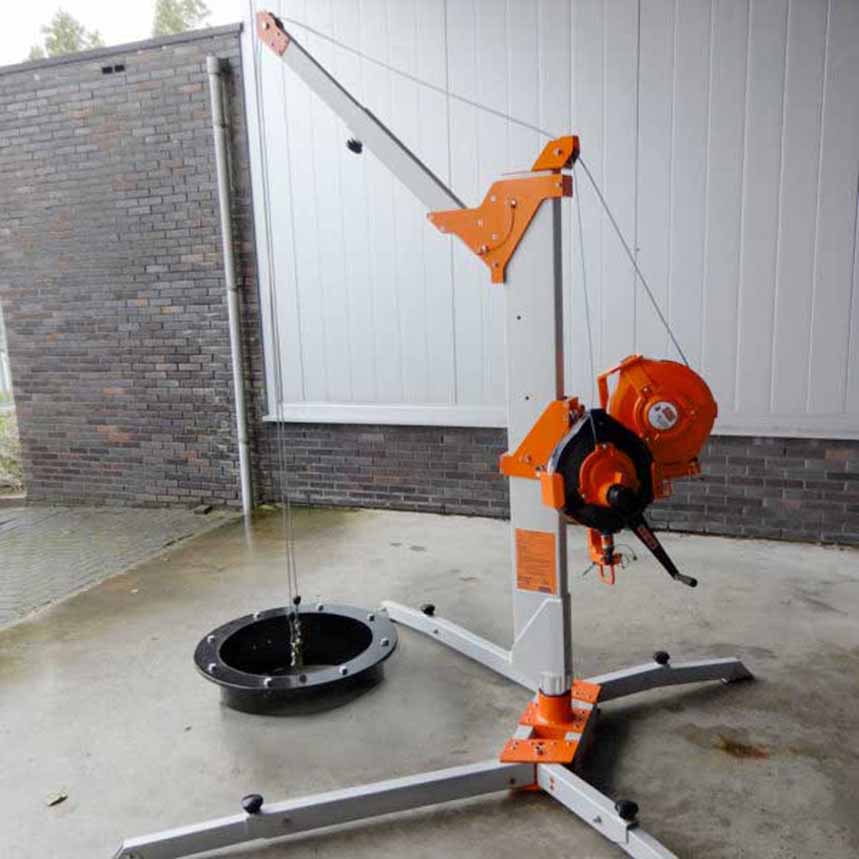

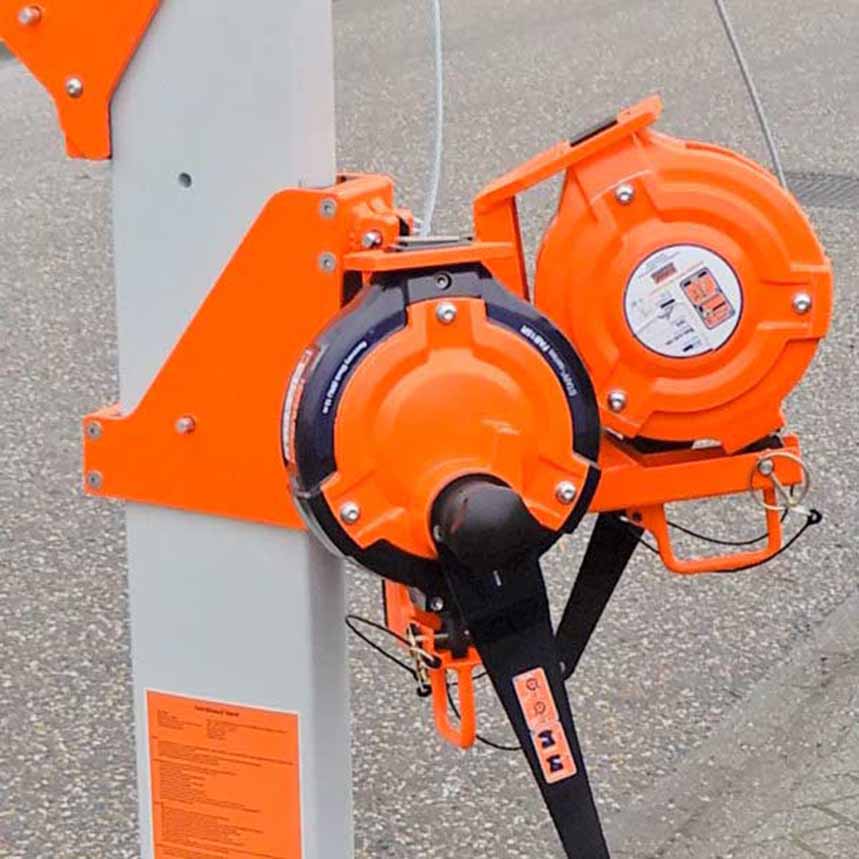

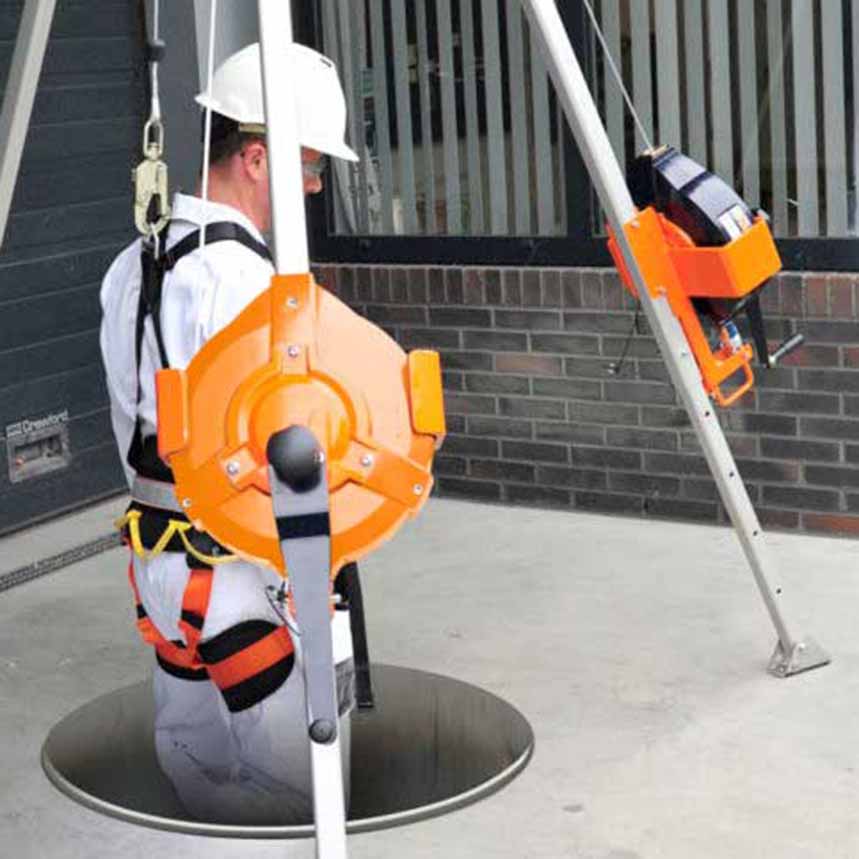

- Modular with all HONOR anchor points such as: HONORope® systems, tripod, TwinSleeve® davit, FlangeClamp® and TankClamp®
- Built-In Fall Protection: free-wheel mode has a built-in overspeed brake with energy absorbing capacity (similar to SRL’s) which provides secondary fall protection
- Safety Hook: swivelling self-locking snap hook provides secure connection to the load and prevents cable from twisting for smoother operation (with non-resettable impact indicator enabling user to visually check to see if device has been impact-loaded)
