Honor Winch Tank Clamp - Rescue and Retrieval
Honor Winch Tank Clamp

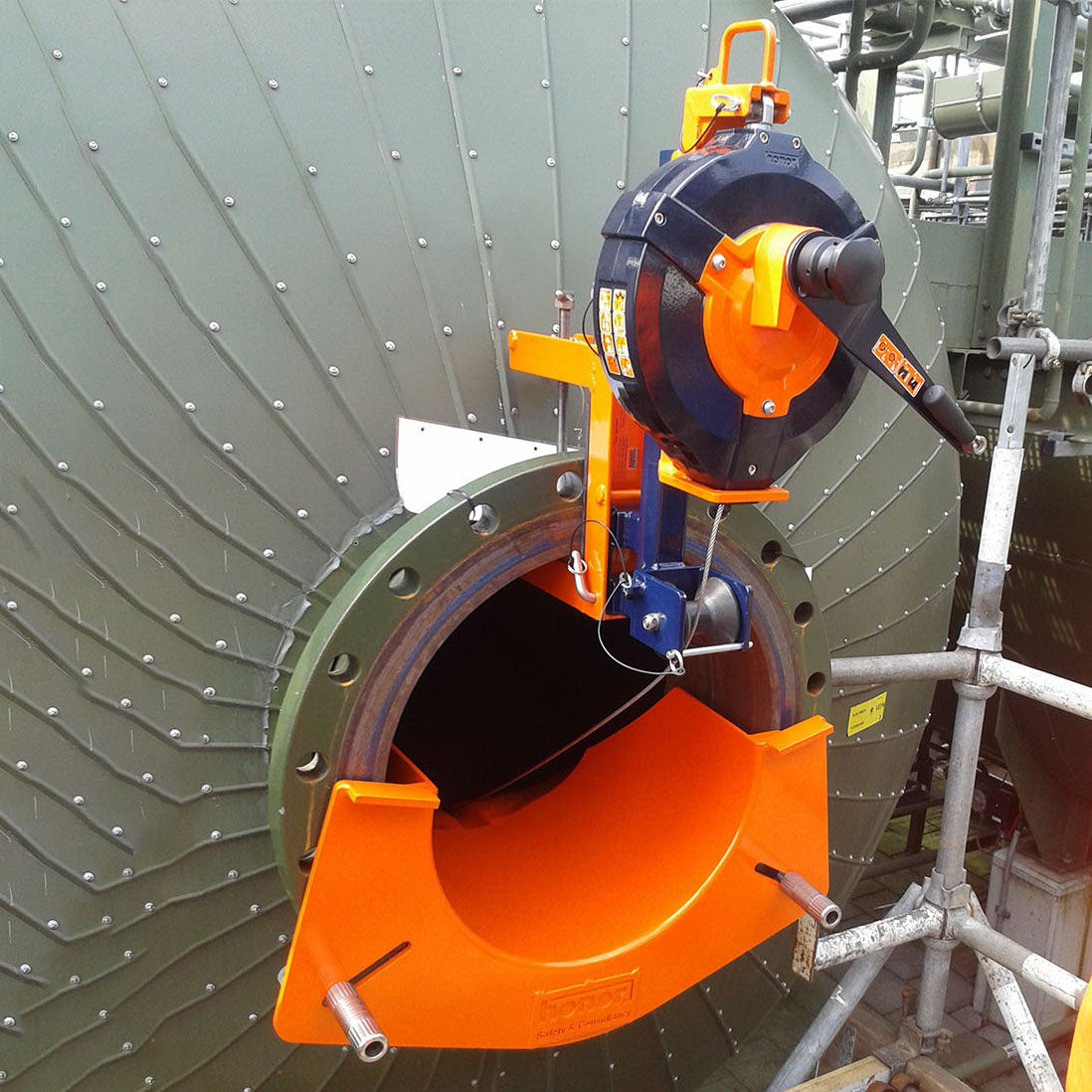

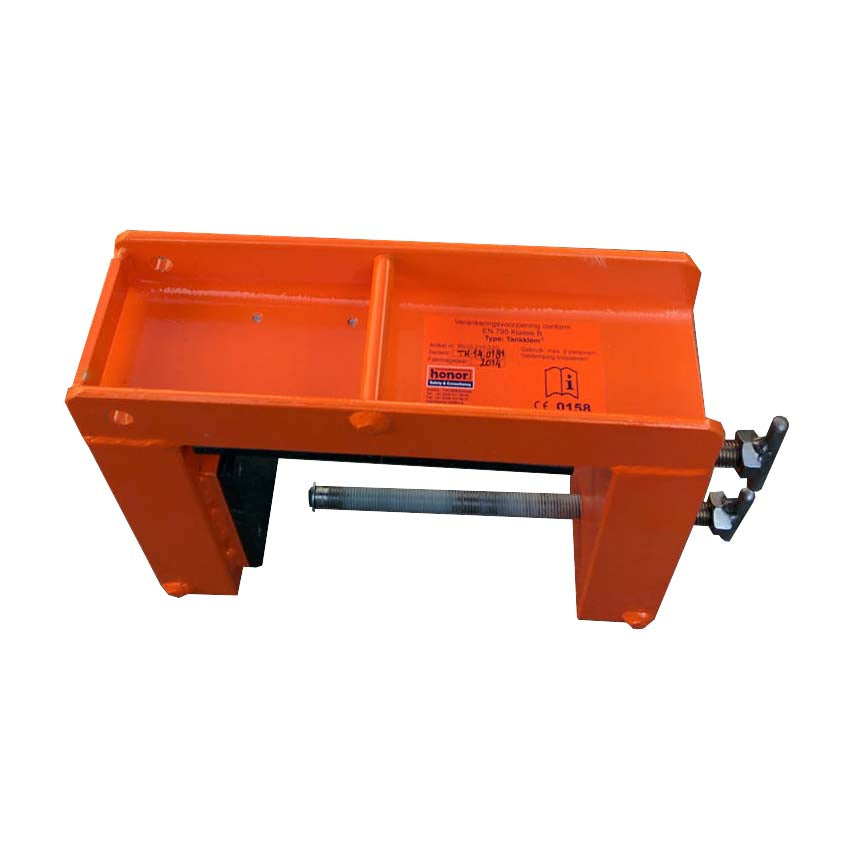

The Honor TankClamp is a movable anchor device made specifically for tank edges and for horizontal and vertical manholes. It is certified to EN 795:2012 class B under approval CE-0158. With the appropriate fall arrester, winch or rescue device attached it becomes the anchor point for confined space entry, fall arrest, rescue and evacuation, and it can be combined with the Honor RescueSlide for entry into and rescue from a confined space. The standard clamp takes an edge up to 200mm, with a special version to 500mm. It is galvanised steel with an orange powder coat and weighs 10.7kg.

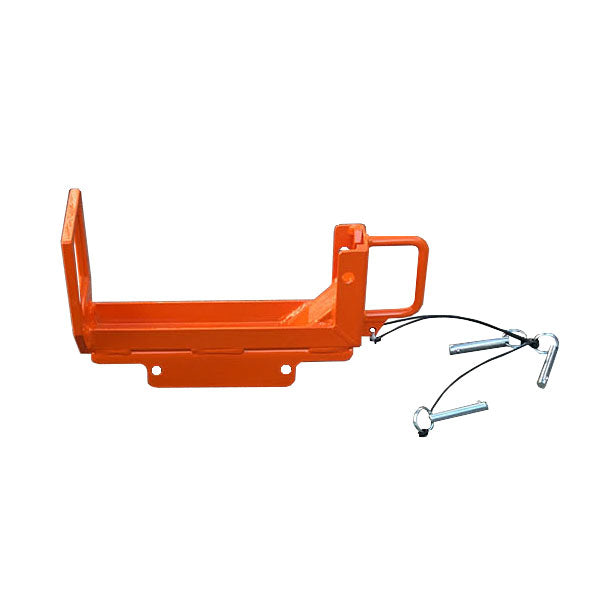

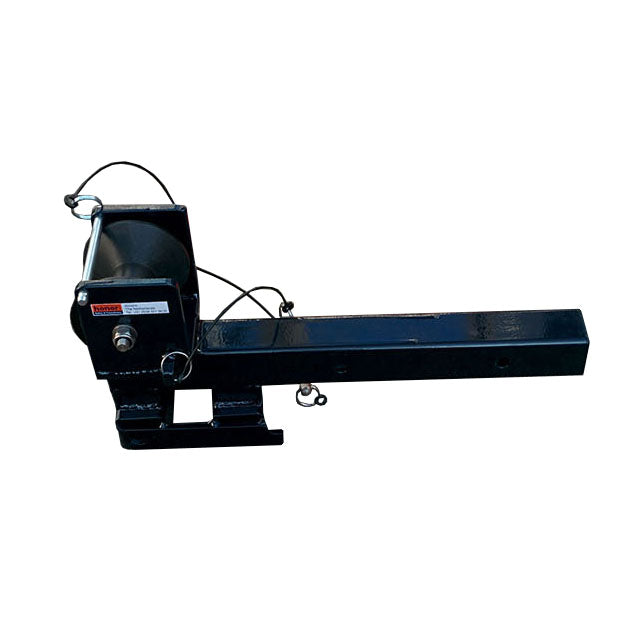

To use the TankClamp, additional Honor modular accessories are required, starting with the intermediate bracket (R010.210.034) and then the STAR series fall arrest block, air winch or man riding winch of your choice. The same intermediate bracket also fits the Honor FlangeClamp, davit and tripod. Please note Honor Safety and Rescue products are not currently available in Australia, so contact our team and we can recommend an available alternative. Compare the Honor davit systems and the Honor FAB rescue fall arrest block, or browse rescue and retrieval.
Key Features
- Movable anchor for tank edges and horizontal or vertical manholes
- Vertical fall arrest, rescue, evacuation and recovery use
- EN 795:2012 class B, CE-0158, 10.7kg galvanised steel
- Standard jaw takes a 200mm edge, special version to 500mm
- Intermediate bracket also fits the Honor FlangeClamp, davit and tripod
Specifications
| Brand | Honor |
| Type | Movable anchor device for tank edges and manholes |
| Vertical use | Fall arrest, rescue, evacuation, recovery |
| Horizontal use | Horizontal and vertical manholes |
| Requires | Intermediate bracket R010.210.034, plus a STAR series block or winch |
| Availability | Not currently stocked in Australia |
| Standard | EN 795:2012 class B, approval CE-0158 |
| Clamp width | 200mm standard, 500mm special |
| Weight | 10.7kg |
| Material | Galvanised steel, orange powder coated |
Is the Honor Tank Clamp available in Australia?
Honor Safety and Rescue products are not currently stocked in Australia. Contact our sales team and we can recommend an available alternative anchorage or davit for the same confined space and rescue tasks.
What structures does it clamp to?
Honor make it specifically for tank edges and for horizontal and vertical manholes. The standard jaw clamps an edge up to 200mm and a special version goes to 500mm, so check the edge thickness first. For a structural beam Honor make a separate beam clamp.
What else do I need to use it?
The clamp works with Honor modular accessories, including an intermediary bracket and a fall arrest block, plus a retrieval or man riding winch of your choice, which are selected to suit the job.
Is the TankClamp certified?
Yes. Honor certify it to EN 795:2012 class B under approval CE-0158. It is galvanised steel with an orange powder coat and weighs 10.7kg.
