Honor FlangeClamp - Rescue and Retrieval
Honor FlangeClamp Rescue and Retrieval

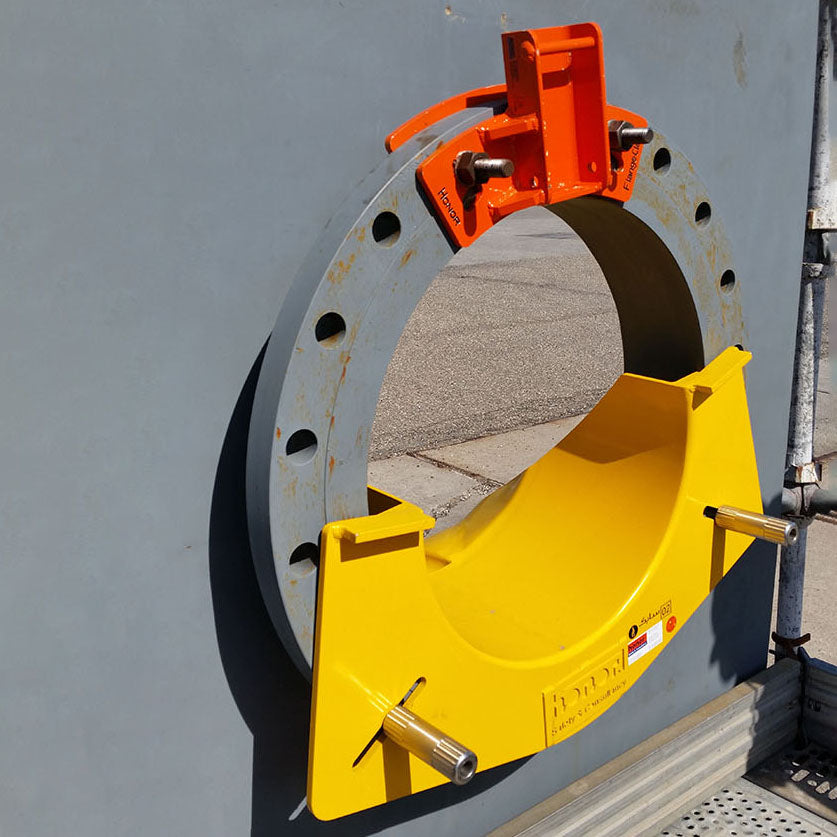

The Honor FlangeClamp is a temporary anchor point for horizontal manholes, bolted onto the manhole flange. The standard version suits ANSI and API standardised flanges of 500mm to 600mm (20 to 24 inch), and Honor engineer other diameters and shapes, including oval, to order. Its small build up dimensions suit the situation where there is little space between the flange and the tank wall insulation, or between the flange and the platform railing. It is certified to EN 795:2012 Class B under approval CE-0158, is rated for one user, weighs 6.5kg and is galvanised steel with an orange powder coat. That makes it well suited to tank, vessel and process plant entry work.

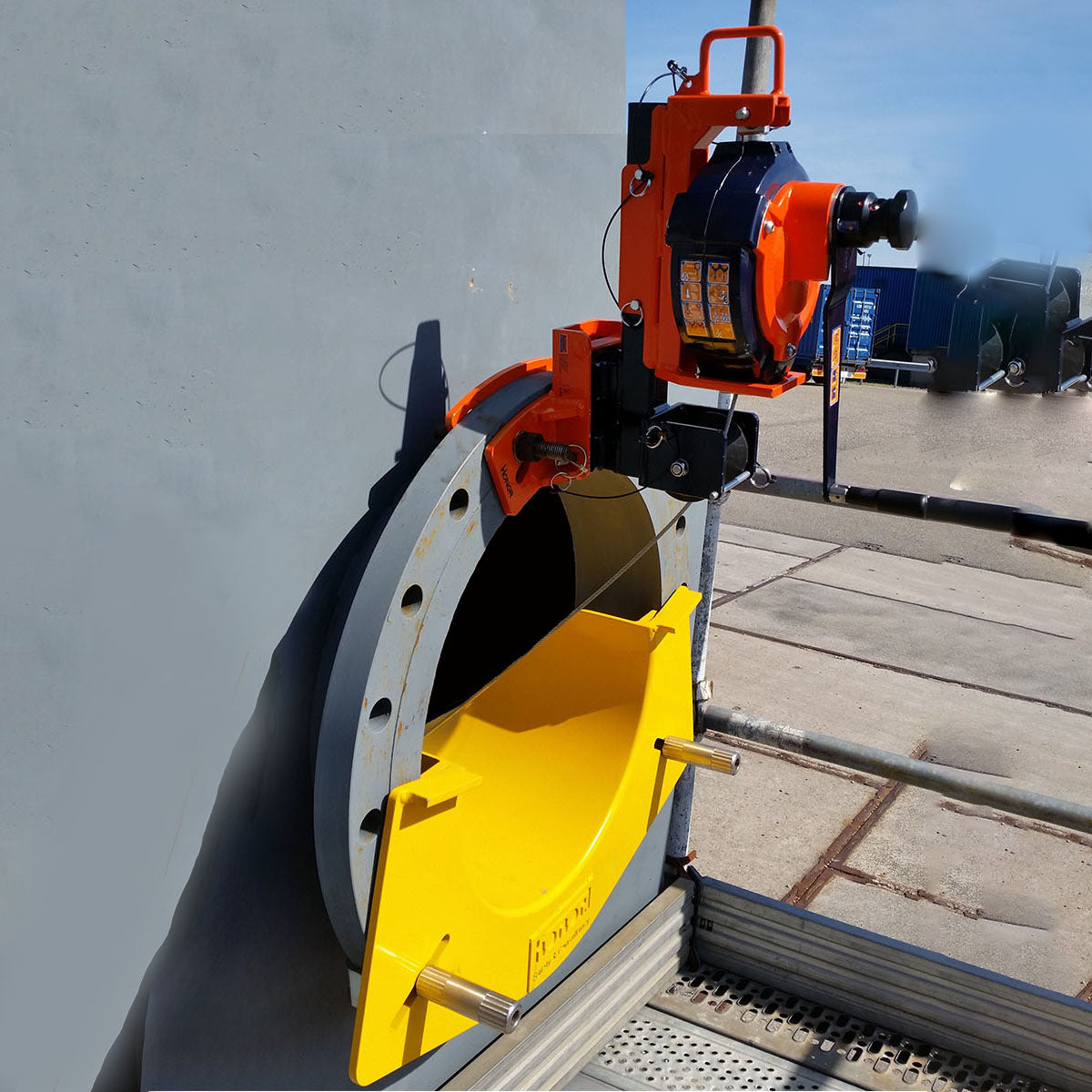

The FlangeClamp takes self retracting lifelines, recovery blocks, rescue and evacuation devices, man riding winches and air winches through modular brackets, starting with the intermediate bracket (R010.210.036). Honor have it Notified Body approved in combination with all the relevant STAR series devices plus the modular mounting brackets, and the same brackets carry across the TankClamp, tripod and TwinSleeve davit. Add the optional RescueSlide to form a complete kit for confined entry and rescue. Please note Honor Safety and Rescue products are not currently available in Australia, so contact our team for an available alternative. Compare the Honor Tank Clamp and the Honor davit systems, or browse rescue and retrieval.
Key Features
- Temporary anchor point bolted onto a horizontal manhole flange
- Fits ANSI and API flanges 500 to 600mm (20 to 24 inch); other shapes engineered to order
- Ideal where working space at the flange is limited
- Works with SRLs, recovery blocks, rescue devices and winches
- Compatible with the TankClamp, optional RescueSlide
- EN 795:2012 Class B, approval CE-0158, one user, 6.5kg
Specifications
| Brand | Honor |
| Type | Mobile flange clamp anchor |
| Fits | ANSI and API flanges 500 to 600mm (20 to 24 inch); other diameters and shapes to order |
| Works with | SRLs, recovery blocks, rescue devices, winches |
| Compatible | Honor TankClamp, optional RescueSlide |
| Availability | Not currently stocked in Australia |
| Standard | EN 795:2012 Class B, approval CE-0158 |
| Capacity | 1 user |
| Weight | 6.5kg |
| Material | Galvanised steel, orange powder coated |
What is the FlangeClamp used for?
It is a temporary anchor point that bolts onto a horizontal manhole flange, in the ANSI and API 500 to 600mm (20 to 24 inch) range, with other diameters and shapes engineered to order. It gives a solid anchor for confined space entry and rescue where there is little room between the flange and the tank wall insulation or the platform railing. It is certified to EN 795:2012 Class B, rated for one user and weighs 6.5kg.
Is the Honor FlangeClamp available in Australia?
Honor Safety and Rescue products are not currently stocked in Australia. Contact our team and we can recommend an available anchor point or davit for the same tank and vessel entry work.
What can I attach to it?
It works with self retracting lifelines, recovery blocks, rescue devices and man riding winches, and is compatible with the Honor TankClamp. Adding the optional RescueSlide creates a complete confined entry and rescue kit.
