Spring Loaded Bolt Anchors - Concrete & Steel

Brand: Ferno

Product Code: CM-RAF075N

Availability:In stock

Available Options

These spring loaded removable bolt anchors from Ferno are designed for concrete and steel structures, are mobile and simple to use. The spoon and cone design is for the concrete version and the toggle design is for steel. They lock and remove using a hand operated spring loaded trigger that activates a locking device. No additional tools are required.

Features and Benefits

  • Maximum User Weight: 136 kg
  • Polyurethane coated anchor loop
  • Suitable for vertical, horizontal or overhead use
  • Spring loaded trigger that activates to engage & disengage the securing mechanism

Variants

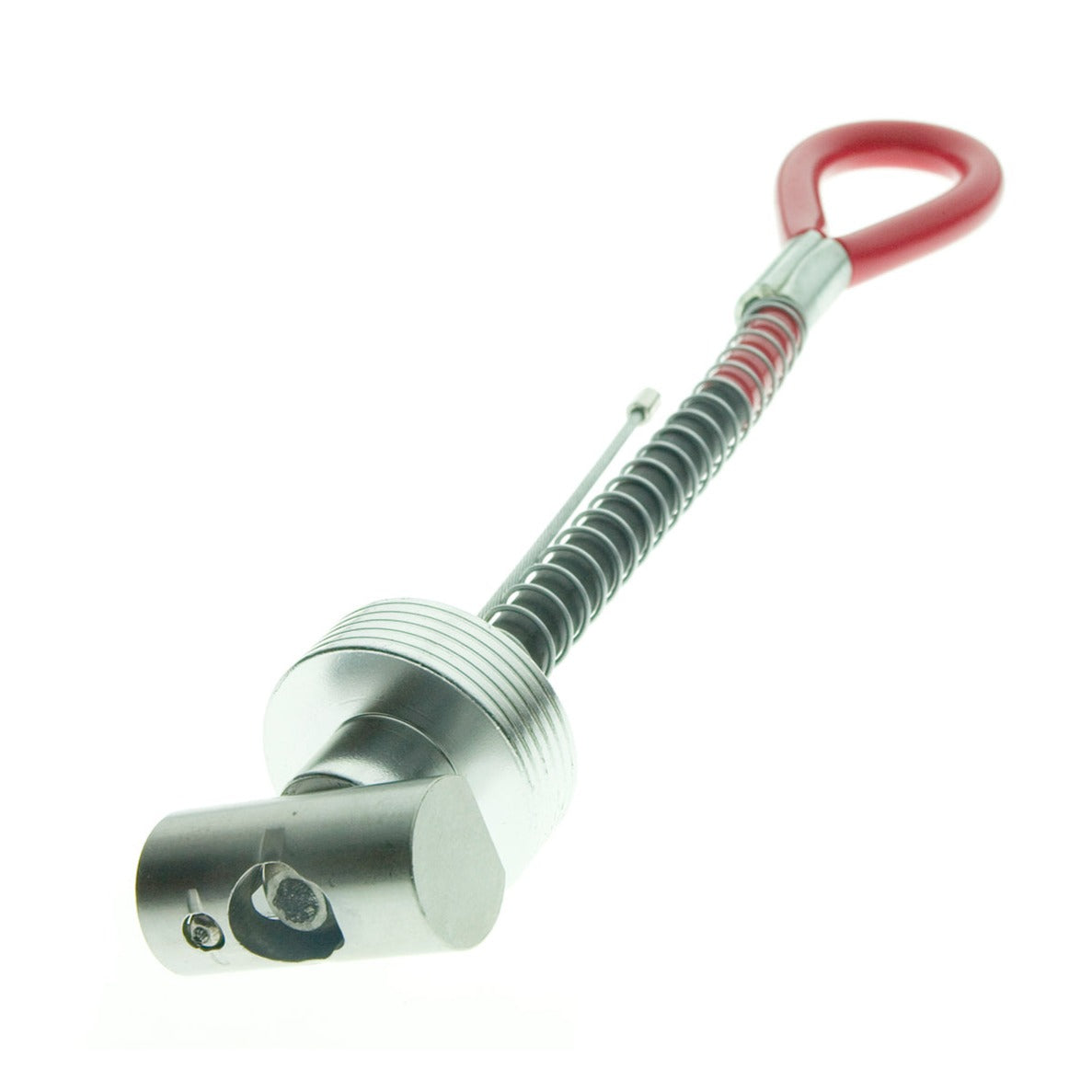

CM-TLA075N - Steel

  • Requires a 20mm x 6.5mm hole (minimum)
  • 22 kN requires 20 mm x 90 mm hole
  • 44 kN requires 25 mm x 115 mm hole

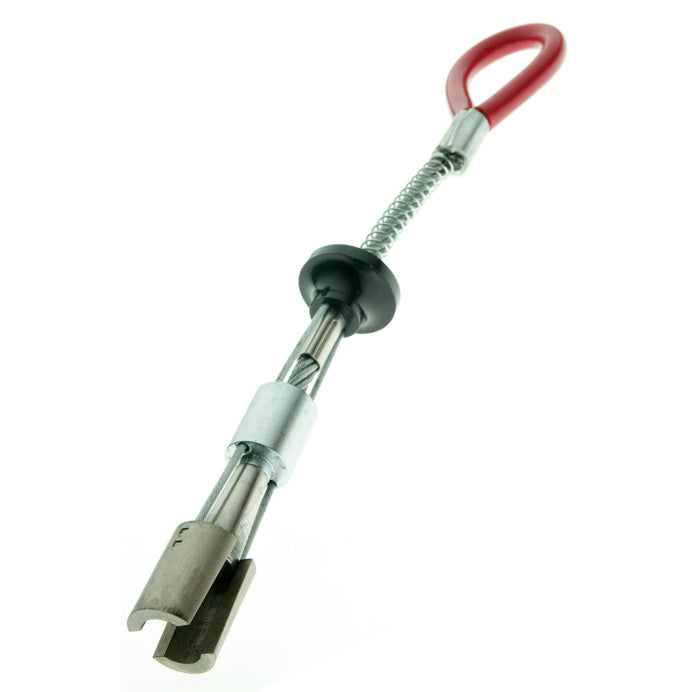

CM-RAF075N - Concrete

  • 22kN Requires a 20mm diameter x 90mm deep hole

CM-RAF100N - Concrete

  • 44kN Requires a 25mm diameter x 115mm deep hole

Standards: EN 795:1996 (+A1:2000) Class B; ANSIZ359.1-2007; ANSIZ359.7-2011; OSHA 1926.502; CE 0321
